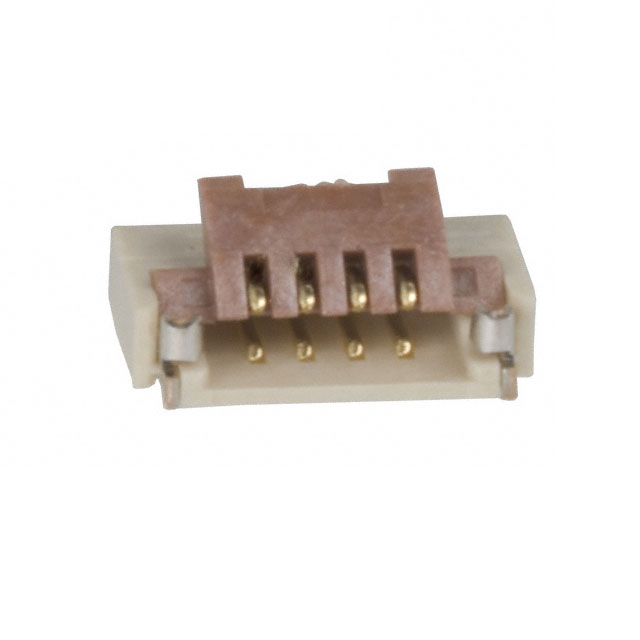

Hirose FH19C-4S-0.5SH(10) Connector Product Overview:
 | makers | Hirose |
| Manufacturer's Code | FH19C-4S-0.5SH(10) | |
| Product Description | CONN FFC BOTTOM 4POS 0.5MM R/A, 4 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Hirose FH19C-4S-0.5SH(10) Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | Hirose Electric Co Ltd |
| range | FH19C |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| pin position | 4 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.88mm） |
| lockout function | trigger lock |
| Cable End Type | taper |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| characterization | Fixed Tail, Zero Insertion Force (ZIF) |
| rated voltage | 50V |
| operating temperature | -55°C ~ 85°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Housing Color | rice-colored |
| Actuator Color | yellow-brown |
| Number of mating times | 20 |
| Basic Product Number | FH19 |
Hirose FH19C-4S-0.5SH(10) Connector Product (Series) Description:
Hirose Electric Co Ltd's FH19C series FFC/FPC (flat flexible) connector is a high-performance, miniaturized surface mount solution designed to meet the demanding needs of modern electronic devices. The connector supports a Zero Insertion Force (ZIF) configuration with trigger locking to ensure quick and easy installation and a robust connection, and the FH19C features a 4-pin, 0.50mm pitch for 0.20mm-thick FFCs and FPCs with a space-saving on-board height of only 0.88mm, ideal for ultra-thin electronic devices. The contacts are made of gold-plated phosphor bronze to provide excellent electrical performance and durability, supporting current ratings up to 0.5A and voltage ratings up to 50V. The housing and actuator are made of UL94 V-0 rated, high performance liquid crystal polymer (LCP) or polyphenylene sulfide (PPS), which provides excellent flame retardancy and reliability over a wide temperature range of -55°C to 85°C. The actuator is also available in a wide range of colors, including black, white, and blue. With a mating life of up to 20 cycles to ensure long-term stability, the FH19C series is particularly well suited for portable devices, communication equipment and consumer electronics.
