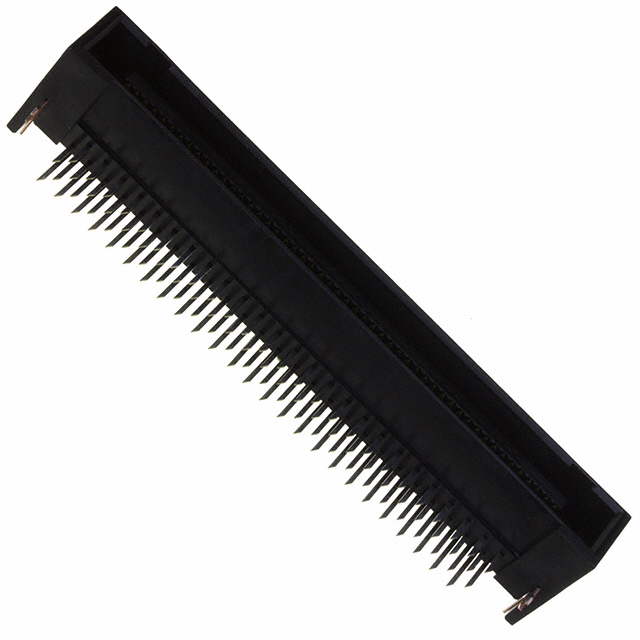

JAE TX25-100P-LT-H1E Connector Product Overview:
 | makers | JAE |
| Manufacturer's Code | TX25-100P-LT-H1E | |
| Product Description | CONN PLUG 100POS R/A GOLD,100 pos Connectors Plug, Center Contacts with Through Hole, Right Angle Gold Plated |
JAE TX25-100P-LT-H1E Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | TX25 |
| wrap | pallets |
| Connector Type | Plug, Center Contact Strip |
| pin position | 100 |
| spacing | 0.050"（1.27mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Through Hole, Right Angle |
| characterization | plank used to cover nail holes in cypress bark roofing |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| board height | 0.354"（9.00mm） |
| Basic Product Number | TX25-100 |
JAE TX25-100P-LT-H1E Connector Product (Series) Description:
JAE Electronics has introduced the TX25 series of rectangular connectors designed for high-density board-to-board connectivity needs, offering both reliability and performance. This series of connectors belongs to the array, edge type mezzanine type (board to board) structure, support 100 pin position plug design, pitch is 0.050" (1.27mm), rows for the double row layout, to ensure that the compact design and stability of the perfect balance of the performance. TX25 series adopts the through-hole right-angle mounting method, and is equipped with the board locking function, effectively enhance the stability of the connection, suitable for the need for high durability of electronic equipment. The TX25 series features through-hole right-angle mounting and a board locking feature to enhance connection robustness for electronic devices requiring high durability. The contacts are gold plated to a thickness of 4.00µin (0.100µm), providing excellent oxidation resistance and superior electrical contact characteristics. The on-board height of 0.354" (9.00mm) makes them ideal for a wide range of space-constrained applications. Whether it's industrial automation equipment, communications equipment, or consumer electronics, the TX25 Series provides a reliable, long-lasting connectivity solution ideal for high-performance interconnect requirements.
