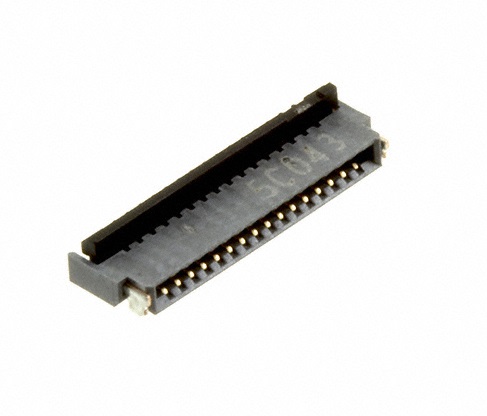

Hirose FH34SRJ-16S-0.5SH(50) Connector Product Overview:
 | makers | Hirose |
| Manufacturer's Code | FH34SRJ-16S-0.5SH(50) | |
| Product Description | CONN FFC FPC 16POS 0.5MM R/A, 16 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Hirose FH34SRJ-16S-0.5SH(50) Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | Hirose Electric Co Ltd |
| range | FH34SRJ |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 16 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.30mm |
| board height | 0.039"（1.00mm） |
| lockout function | Swivel Lock, Back Lock |
| Cable End Type | taper |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP), Halogen-Free |
| Actuator Materials | Polyamide (PA), Nylon |
| characterization | Zero Insertion Force (ZIF) |
| rated voltage | 50V |
| operating temperature | -55°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Contact surface treatment thickness | 1.97µin（0.050µm） |
| Housing Color | gray |
| Actuator Color | ferrous |
| Number of mating times | 20 |
| Basic Product Number | FH34SRJ |
Hirose FH34SRJ-16S-0.5SH(50) Connector Product (Series) Description:
Hirose Electric Co Ltd's FH34SRJ series FFC/FPC (Flat Flexible) connectors are precision interconnect assemblies designed for high-density electronic devices. Featuring a surface-mount, right-angle design with Zero Insertion Force (ZIF) construction and a dual locking mechanism of rotary and back-locking, the FH34SRJ series has a 16-pin position, 0.50mm pitch, and supports 0.30mm-thick FFCs/FPCs and is compatible with flexible mating of the upper and lower contacts. With an on-board height of only 1.00mm, they are ideal for ultra-thin electronic device applications. The contacts are made of gold-plated phosphor bronze with a 0.050µm coating to provide excellent electrical performance and durability, supporting current ratings up to 0.5A and voltage ratings up to 50V. The housing and actuator are made of UL94 V-0 rated halogen-free liquid crystal polymer (LCP) and polyamide (PA) materials that are highly flame retardant and environmentally friendly for reliable operation over a wide temperature range of -55°C to 105°C. The housing and actuator have a mating life of up to 20 cycles. Its high mating life of up to 20 cycles makes it ideal for consumer electronics, communications equipment and industrial control systems.
