Categorization：Brand Connector

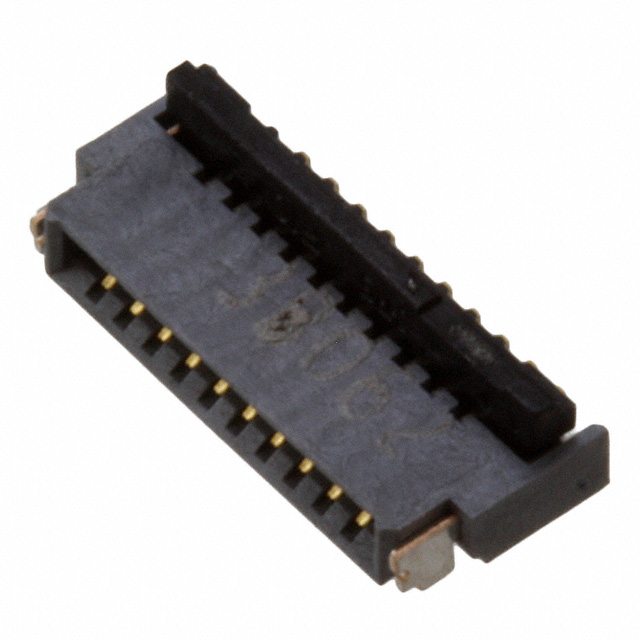

Hirose FH34SRJ-10S-0.5SH(50) Connector Product Overview:
 | makers | Hirose |
| Manufacturer's Code | FH34SRJ-10S-0.5SH(50) | |
| Product Description | CONN FFC FPC 10POS 0.5MM R/A, 10 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
Hirose FH34SRJ-10S-0.5SH(50) Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | Hirose Electric Co Ltd |
| range | FH34SRJ |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 10 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.30mm |
| board height | 0.039"（1.00mm） |
| lockout function | Swivel Lock, Back Lock |
| Cable End Type | taper |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP), Halogen-Free |
| Actuator Materials | Polyamide (PA), Nylon |
| characterization | Zero Insertion Force (ZIF) |
| rated voltage | 50V |
| operating temperature | -55°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Contact surface treatment thickness | 1.97µin（0.050µm） |
| Housing Color | gray |
| Actuator Color | ferrous |
| Number of mating times | 20 |
| Basic Product Number | FH34SRJ |
Hirose FH34SRJ-10S-0.5SH(50) Connector Product (Series) Description:
Hirose Electric Co Ltd's FH34SRJ series is a FFC/FPC (flat flexible) connector designed for high-density electronic devices, offering excellent reliability and flexibility. Supporting both surface mount and right-angle mounting, the connectors incorporate a zero insertion force (ZIF) design and dual locking functions of rotary and back-locking to ensure easy installation and a stable connection.The FH34SRJ series offers a 10-pin position with a 0.50mm pitch for FFCs and FPCs with a thickness of 0.30mm, and supports both the upper and lower contact connection methods. With an on-board height of only 1.00mm, they are ideal for ultra-thin electronic applications where space is limited. The contacts are made of gold-plated phosphor bronze with a 0.050µm coating and support a rated current of 0.5A and a rated voltage of 50V, ensuring excellent electrical performance and durability. Made of halogen-free liquid crystal polymer (LCP) for the housing and polyamide (PA) for the actuator, the series meets UL94 V-0 flame retardant standards and is suitable for use over a wide temperature range from -55°C to 105°C. The series has a mating life of up to 20 cycles. With a mating life of up to 20 cycles, they are ideally suited for communications equipment, consumer electronics and industrial applications.
Hirose FH34SRJ-10S-0.5SH(50) Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | FH34SRJ Series Datasheet |
Hirose FH34SRJ-10S-0.5SH(50) Connector Genuine|Replacement Description:
We specialize in stocking (Hirose) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
