I-PEX 20660-039E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20660-039E-01 | |

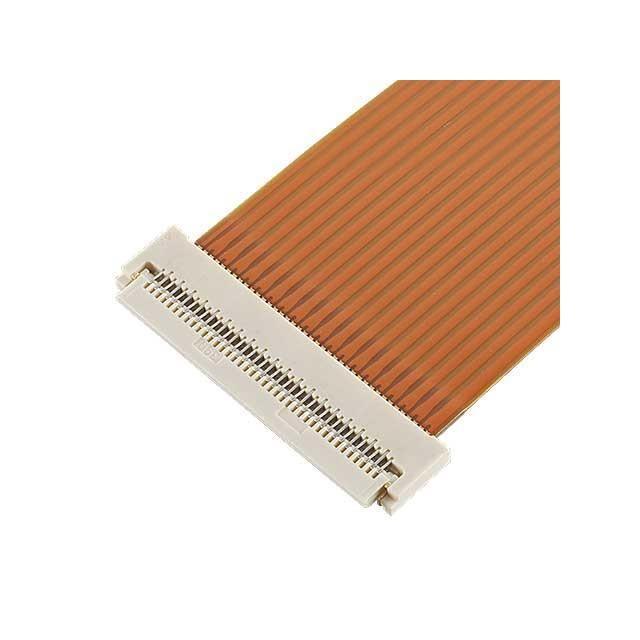

| Product Description | MINIFLEX 3-BFNH L-HD 39P, 39 pos FFC, FPC Connector Contacts, Top and Bottom 0.024" (0.60mm) Surface Mount, Right Angle. |
I-PEX 20660-039E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 3-BFN LK |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 39 |
| spacing | 0.024"（0.60mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.88mm） |
| lockout function | trigger lock |
| Cable End Type | Notched, Tapered |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.3A |
| Contact surface treatment thickness | 3.94µin（0.10µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20660-039E-01 Connector Product (Series) Description:
MINIFLEX@ 3-BFNH L-HD is a high performance connector designed for FPC/FFC applications. Its unique hold down design ensures stronger holding power and improves connection stability. It features a long piano cover with a low back height of only 0.9mm, making it suitable for space-constrained application scenarios. Its 0.3mm pitch and horizontal plug-in feature make the connection easier and more reliable.
