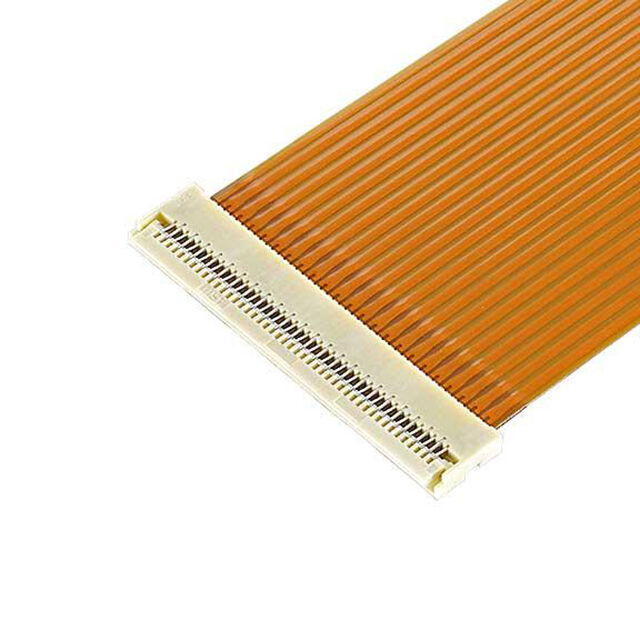

I-PEX 20613-041E-02 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20613-041E-02 | |
| Product Description | MINIFLEX 3-BFNH 41P, 41 pos FFC, FPC Connector Contacts, Top and Bottom 0.024" (0.60mm) Surface Mount, Right Angle. |
I-PEX 20613-041E-02 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 3-BNFH |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 41 |
| spacing | 0.024"（0.60mm） |
| end-joining (e.g. of two ships or aircraft) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.88mm） |
| lockout function | trigger lock |
| Cable End Type | Solder Lug, Tapered |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.3A |
| Contact surface treatment thickness | 3.94µin（0.10µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20613-041E-02 Connector Product (Series) Profile:
The MINIFLEX@ 3-BFNH is a high-performance connector designed for applications requiring excellent connection stability. It features improved retention and a compatible footprint for 0.3 mm pitch requirements, ensuring compatibility with a wide range of FPC/FFC cables. The connector is available with both short and long operators to meet different application requirements. The contacts are configured as top and bottom, each with 1.0 mm and 0.45 mm contact lengths and a thickness of 0.2±0.03 mm to ensure a reliable electrical connection. With a height of 0.90±0.10 mm, a width of 1.5+(0.3*p) mm and a depth of 2.95 mm, they are perfectly adapted to compact circuit designs.
MINIFLEX@ 3-BFNH connectors support a wide range of pin counts (7, 9, 11, 21, 23, 25, 31, 33, 35, 39, 41, 45, 51, 61, 71) for a wide range of electronic applications, providing flexible connection solutions. Whether in mobile devices, consumer electronics or industrial equipment, MINIFLEX@ 3-BFNH provides you with reliable connection performance.
