Categorization：Brand Connector

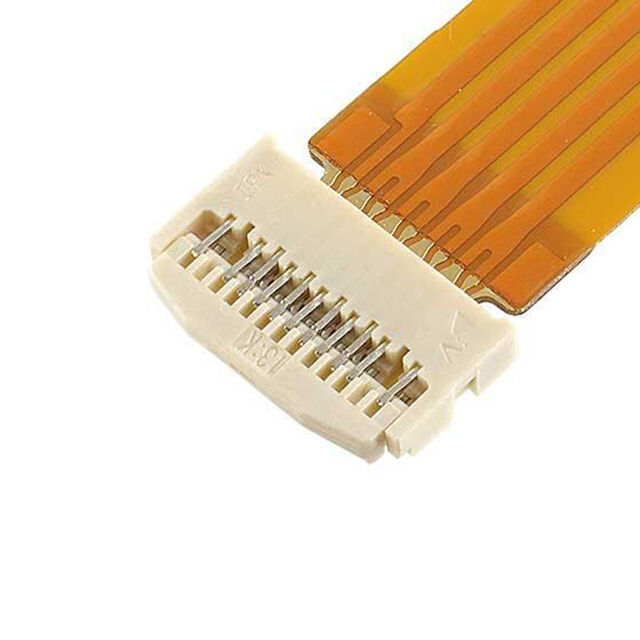

I-PEX 20647-030E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20647-030E-01 | |
| Product Description | MINIFLEX 5-FF 30P, 30 pos FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle. |
I-PEX 20647-030E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | EVAFLEX® 5-SE-G VT |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| pin position | 30 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.30mm |
| board height | 0.100"（2.54mm） |
| lockout function | trigger lock |
| Cable End Type | Solder Lug, Tapered |
| Contact Material | copper alloy |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 105°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Contact surface treatment thickness | 1.25µin（0.03µm） |
| Housing Color | rice-colored |
| Actuator Color | ferrous |
| Number of mating times | 20 |
I-PEX 20647-030E-01 Connector Product (Series) Description:
The MINIFLEX® 5-FF connector has a robust design and is equipped with a fixing function for various FPC/FFC connection requirements. With a height of 2.55 mm and a pitch of 0.5 mm, they feature a horizontal front flip for easy installation and use.
The main specifications of the connector include a board pitch of 0.5 mm, an FPC/FFC contact pitch of the same 0.5 mm, and a contact wipe length of 1.40 mm. The thickness of the FPC/FFC ranges from 0.3 mm ± 0.05 mm, which ensures good contact performance. In addition, the MINIFLEX® 5-FF connector has a width of 6.4 mm when open and a depth of 7.2 mm when closed, making it suitable for a wide range of applications in the 10 to 80 range. Available in pin counts of 20, 30, 40, 50, 55, 60, 64 and 68 to meet different design requirements, MINIFLEX® 5-FF connectors are the ideal connectivity solution for the electronics industry due to their excellent performance and flexible options.
I-PEX 20647-030E-01 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 20647-030E-01_Datasheet |
I-PEX 20647-030E-01 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
