Categorization：Brand Connector

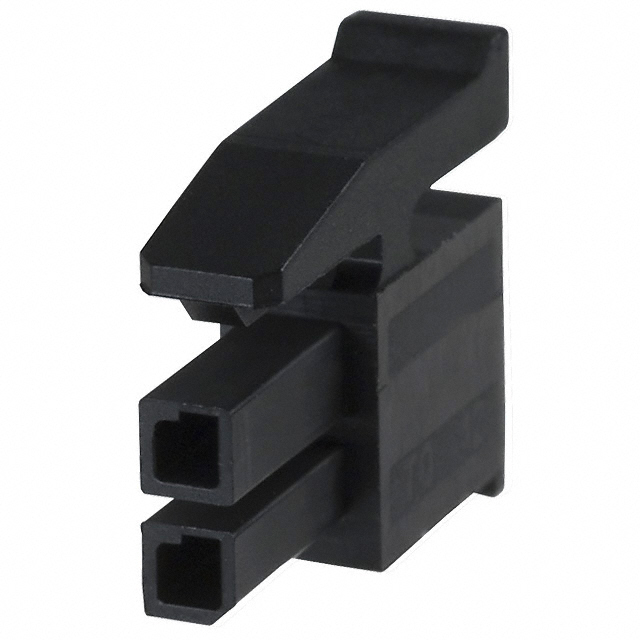

TE 794617-2 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 794617-2 | |
| Product Description | CONN RCPT HSG 2POS 3MM, 2 Rectangular Connector - Housing Receptacle Black |
TE 794617-2 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | Micro MATE-N-LOK |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 2 |
| number of sets (of clothes, etc.) | 2 |
| leading | 0.118"（3.00mm） |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | ferrous |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 794617 |
TE 794617-2 Connector Product (Series) Profile:
The Micro MATE-N-LOK series of rectangular connector housings from TE Connectivity AMP Connectors is a high-performance, compact and convenient interconnect solution for a wide range of electronic applications. This product is a receptacle type connector, designed as a female socket, supporting 2-pin configuration, with a double row design, row pitch of 0.118" (3.00mm). Its free-hanging installation allows for greater design flexibility, while the pin-lock fastening type provides reliable connection stability. The connector housing is made of high-quality polyamide (PA66) material for excellent durability and impact resistance, and can operate stably over a wide temperature range of -40°C to 105°C, adapting to a wide range of environmental requirements. The product is black in color, simple and durable, does not contain contacts, and needs to be used with the corresponding termination contacts, which support crimp termination. The Micro MATE-N-LOK series of connectors is ideal for use in industrial equipment, consumer electronics, and other applications due to its compactness and reliability.
TE 794617-2 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | 794617 Drawing |
TE 794617-2 Connector Genuine|Replacement Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
