Categorization：Brand Connector

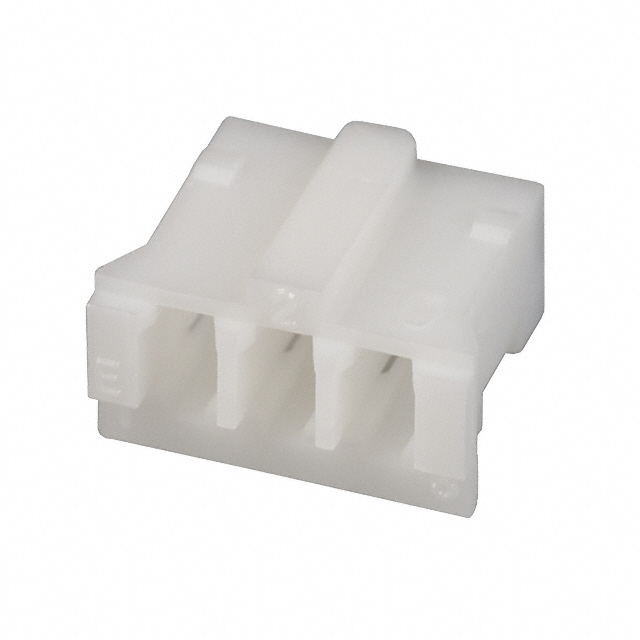

JST Connectors - Provides a product overview of JST PHR-3 connectors:
 | makers | JST |
| Manufacturer's Code | PHR-3 | |
| Product Description | CONN RCPT HSG 3POS 2.00MM, 3 Rectangular Connector - Shell Receptacle Natural 0.079" (2.00mm) |
JST Connectors - Provides product attributes of JST PHR-3 connectors:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Rectangular Connector Shells | |
| makers | JST |
| range | PH |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 3 |
| spacing | 0.079"（2.00mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| characterization | - |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -25°C ~ 85°C |
| note | without contacts |
| Basic Product Number | PHR |
JST Connectors-Provides an overview of JST PHR-3 connector products (series):
The JST PHR-3 PH series connector is a highly reliable 2.0 mm pitch receptacle type connector designed for high-density connectivity needs between internal wires and printed circuit boards (PCBs). With a height of 8.0 mm and a width of 4.5 mm, it features a thin, low-profile profile for applications where space is limited. The connector features a crimp contact head that provides reliable electrical contact and ensures stable performance. The connector has a fully enclosed head design that effectively avoids misinsertion and poor contact problems, and features a PCB fixing mechanism for surface mount (SMT) installation methods. The polyamide (PA66) and nylon 6/6 materials ensure excellent heat resistance and an operating temperature range of -25°C to 85°C. They are suitable for a wide range of connection applications in electronic equipment, especially where high density and low cost are required. JST PHR-3 PH series connectors are not only compact and efficient in design, but also highly reliable, making them a popular and high-quality connection solution for electronic devices.
JST Connectors - Provides JST PHR-3 connector documentation and media:
| Resource type | link (on a website) |
| specification | PH Series Datasheet |
JST Connectors-Provide JST PHR-3 Connector Genuine|Replacement related description:
We specialize in stocking (JST) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
