Categorization：Brand Connector

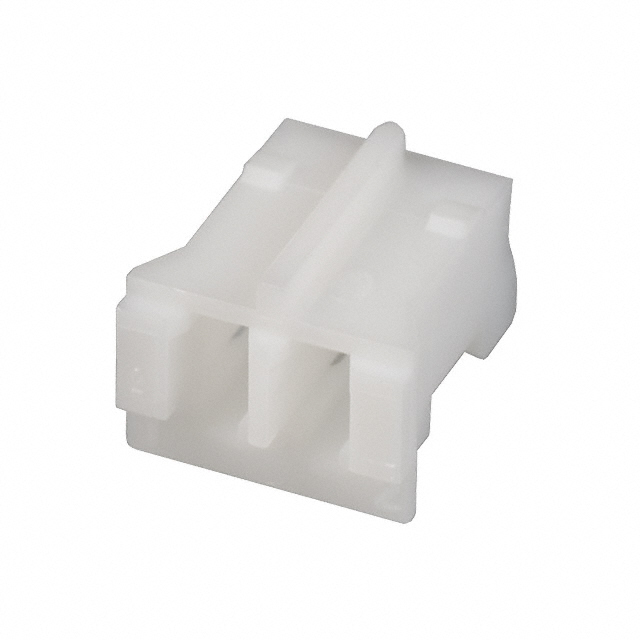

JST Connectors - Provides a product overview of JST PHR-2 connectors:
 | makers | JST |
| Manufacturer's Code | PHR-2 | |
| Product Description | CONN RCPT HSG 2POS 2.00MM, 2 Rectangular Connector - Shell Receptacle Natural 0.079" (2.00mm) |
JST Connectors - Provides product attributes of JST PHR-2 connectors:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | JST |
| range | PH |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 2 |
| spacing | 0.079"（2.00mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| characterization | - |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -25°C ~ 85°C |
| note | without contacts |
| Basic Product Number | PHR |
JST Connectors-Provides an overview of JST PHR-2 connector products (series):
The JST PHR-2 PH series connector is a 2.0 mm pitch receptacle-type connector with a highly reliable and compact design, designed for high-density connectivity needs between internal wires and printed circuit boards (PCBs). With an assembly height of 8.0 mm and a width of 4.5 mm, the connector's low-profile design makes it particularly suitable for space-constrained applications.The PHR-2 connector utilizes crimping technology to ensure good electrical contact and enhance connection stability. It has a fully enclosed head design that effectively avoids possible poor contact problems during plugging and unplugging, and is equipped with a PCB fixing mechanism that further enhances the connector's robustness. This series of connectors supports free-hanging mounting and uses pin-lock fastening to ensure the reliability of the connector during use. Utilizing polyamide (PA66) and nylon 6/6 materials, the JST PHR-2 PH series connectors offer excellent heat resistance with an operating temperature range of -25°C to 85°C, making them suitable for a wide range of electronic device connection needs. Its compact, low-cost features make it an ideal electrical connection solution for a wide range of consumer electronics, communications equipment, and other high-density circuit applications.
JST Connectors - Provides JST PHR-2 connector documentation and media:
| Resource type | link (on a website) |
| specification | PH Series Datasheet |
JST Connectors - Provide JST PHR-2 Connector Genuine | Alternatives related description:
We specialize in stocking (JST) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
