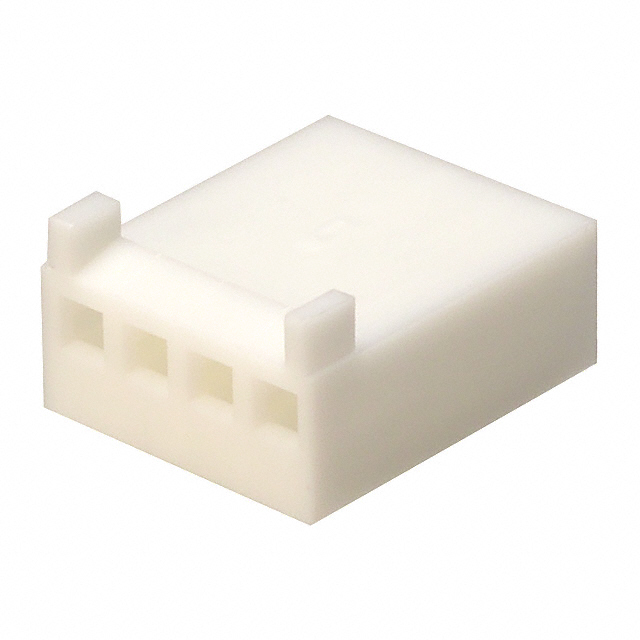

Molex 0022013047 Connector Product Overview:
 | makers | Molex |
| Manufacturer's Code | 22013047 | |
| Product Description | CONN RCPT HSG 4POS 2.54MM,4 Rectangular Connector - Housing Receptacle White 0.100" (2.54mm) |
Molex 0022013047 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | KK254, 2695 |
| wrap | draft (of beer, as opposed bottled) |
| part status | (of a house or room) be sold |
| Connector Type | sockets |
| Contact type | No distinction between male and female |
| pin position | 4 |
| spacing | 0.100"（2.54mm） |
| number of items, etc. in a total | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | fig. reactionary |
| characterization | Electrode marking |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 2201 |
Molex 0022013047 Connector Product (Series) Profile:
The Molex KK254/2695 Series Rectangular Connector Receptacle is a high-quality electrical connection assembly developed for application scenarios requiring stable connections and high-density designs. The receptacle features a 4-pin position with a 2.54mm pin pitch and a single-row construction, making it suitable for electrical connections in compact spaces. The contacts are available in either male or female versions, providing flexible connections, and the termination is crimped to ensure stable and reliable electrical contact. The sockets have a free-hanging mounting and a locking pin slide to securely hold the connector and prevent it from being loosened due to external vibrations or pulling forces. The housing is made of polyamide (PA) and nylon materials with good electrical insulation and high temperature resistance, with an operating temperature range of -40°C to 105°C, adapting to a variety of harsh environments. The connectors do not contain contacts and are packaged in bulk form and are widely used in consumer electronics, industrial control, communication equipment and other fields for a variety of applications requiring high-density connections.
Molex 0022013047 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification |
Molex 0022013047 Connector Genuine|Replacement Related Description:
We specialize in stocking (Molex) brand connectors and are committed to providing our customers with quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
