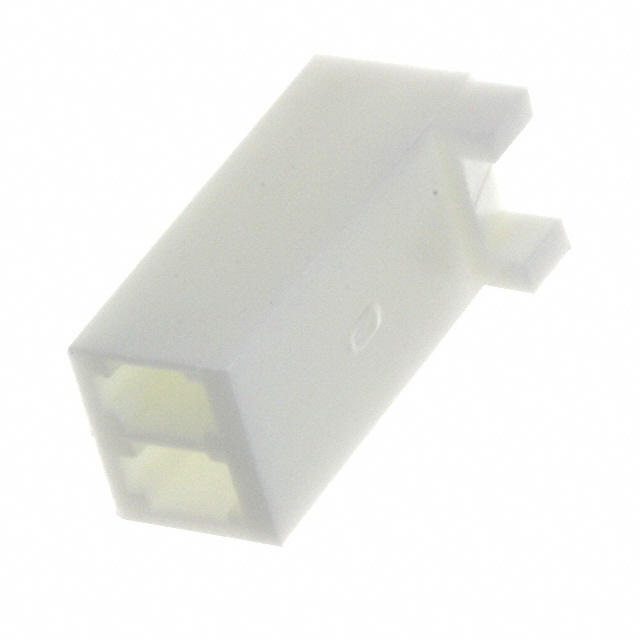

Molex Connectors - Provides a product overview of Molex 0022013027 connectors:
 | makers | Molex |
| Manufacturer's Code | 0022013027 | |
| Product Description | CONN RCPT HSG 2POS 2.54MM, 2 Rectangular Connector - Shell Receptacle White 0.100" (2.54mm) |
Molex Connectors - Offers Molex 0022013027 connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | Molex |
| range | KK254, 2695 |
| Connector Type | sockets |
| Contact type | No distinction between male and female |
| pin position | 2 |
| spacing | 0.100"（2.54mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | Locking Pin Chute |
| color | fig. reactionary |
| characterization | Electrode Marking |
| insulating material | Polyamide (PA), Nylon |
| operating temperature | -40°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 2201 |
| rated voltage | 50V |
| operating temperature | -55°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Rated current (amps) | 0.5A |
| Contact surface treatment thickness | 1.97µin（0.050µm） |
| Housing Color | gray |
| Actuator Color | ferrous |
| Number of mating times | 20 |
| Basic Product Number | FH34SRJ |
Molex Connectors - Provides an overview of the Molex 0022013027 Connector product (series):
The Molex KK 254 series of rectangular connectors is known for its high quality and reliability, and model 0022013027 is a 2-position pin receptacle housing designed to meet a wide range of PCB interconnect requirements. Its 2.54mm standard pitch makes it extremely adaptable for industrial control, consumer electronics and automotive applications. The connectors are made of polyamide (PA) nylon for excellent insulation and durability, and are stable over a wide temperature range of -40°C to 105°C. The connectors are available in a wide range of sizes and sizes. Free-hanging mounting and crimp termination enhance installation flexibility, while the friction-lock design further enhances the robustness of the connection and ensures the stability and reliability of the electrical connection. In addition, the white housing with clear electrode markings allows for quick identification and efficient installation.The Molex KK 254 series is used in a wide range of high-performance applications, providing a safe and reliable electrical connection solution for a variety of equipment.
Molex Connectors - Provides Molex 0022013027 connector documentation and media:
| Resource type | link (on a website) |
| specification | 10-07 Prod Spec |
Molex Connectors - Provides description of Molex 0022013027 Connector Genuine|Replacement:
We specialize in stocking (Molex) brand connectors and are committed to providing our customers with quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
