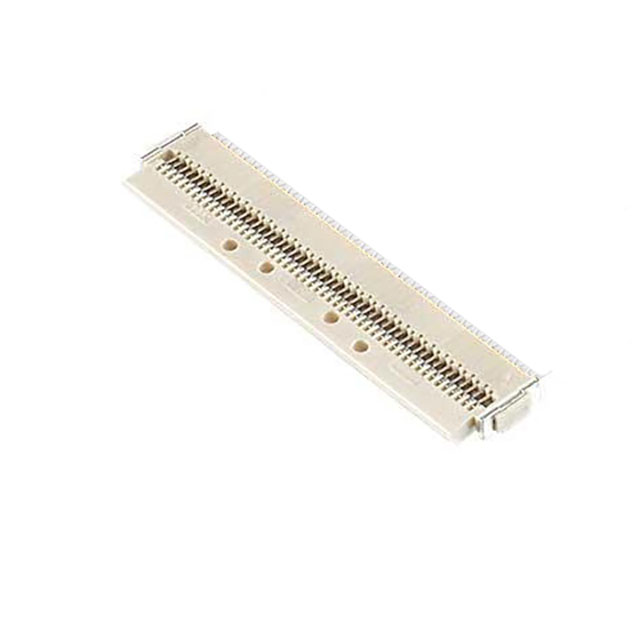

I-PEX 20982-051E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20982-051E-01 | |
| Product Description | MINIFLEX 3-BFN L-HD 51P, 51 pos FFC, FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle. |
I-PEX 20982-051E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 3-BFN L-HD |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 51 |
| spacing | 0.008"（0.20mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | 0.035"（0.90mm） |
| lockout function | Flip Lock, Back Lock |
| Cable End Type | Solder Lug Type |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 300mA/contact |
| Contact surface treatment thickness | 4.00µin（0.10µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20982-051E-01 Connector Product (Series) Description:
The MINIFLEX® 3-BFN L-HD is a connector with a robust design and fixing features for FPC/FFC (Flexible Printed Circuit/Flexible Flat Cable) applications. Its low profile design (height of only 0.9mm) and 0.3mm pin pitch make it ideal for electronic devices with space constraints. The connector utilizes a lateral backflip construction to provide excellent contact performance. Its contacts have a wipe length of 0.9mm and 0.45mm at the top and bottom, respectively, ensuring stable signal transmission. The applicable FPC/FFC thickness range is 0.2mm ± 0.03mm, which meets a wide range of application requirements.
The MINIFLEX® 3-BFN L-HD supports a pin count of 51, has a depth of 3.5mm in the closed state and 2.55mm in the open state, and is suitable for a wide range of board designs with pin counts ranging from 15 to 75. This connector will provide a reliable connection solution for your electronic products.
