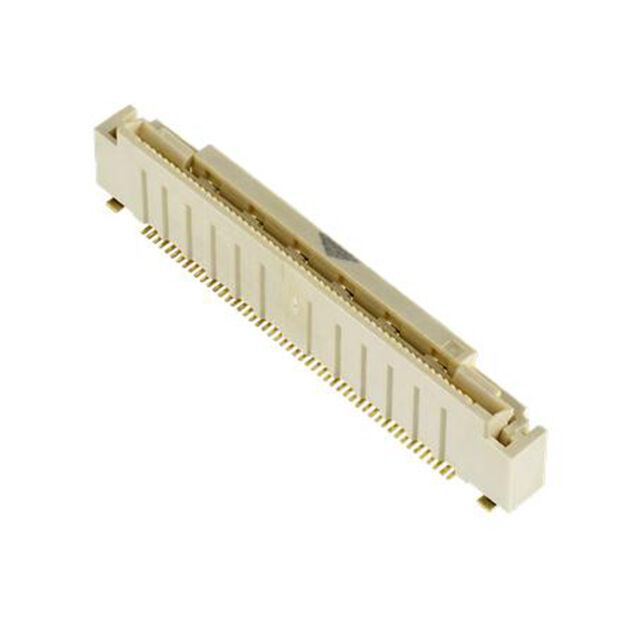

I-PEX 20799-040E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20799-040E-01 | |
| Product Description | EVAFLEX 5-SE-GVT 40P, 40 pos FFC, FPC Connector Contacts, Vertical - Single Side 0.020" (0.50mm) Surface Mount Type. |
I-PEX 20799-040E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | EVAFLEX® 5-SE-G VT |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - Single Sided |
| pin position | 40 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.30mm |
| board height | 0.260"（6.60mm） |
| lockout function | - |
| Cable End Type | notched |
| Contact Material | copper alloy |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | EMI Shielded, Solder Retention |
| rated voltage | 50V |
| operating temperature | -40°C ~ 125°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 500mA/contact |
| Contact surface treatment thickness | 1.25µin（0.03µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 50 |
I-PEX 20799-040E-01 Connector Product (Series) Description:
The EVAFLEX@ 5-SE-G VT is a high-temperature (125°C), high-speed, vertically mated FFC/FPC connector with one-handed auto-locking for shielded and unshielded FFCs with 0.5 mm pin spacing, designed to ensure stability and reliability in harsh environments. Key specifications for the connector include a board pitch of 0.5 mm, contacts on the tail side of the signal contact, contact length of 1.2 mm, height of 6.6 mm (±0.30 mm), FFC/FPC thickness of 0.3 mm (±0.03 mm), and depth of 3.90 mm (±0.20 mm). Available in 20, 30, 40, 50 and 60 pins and compatible with standards such as eDP (2.7Gbps) and V-By-One HS 1.4 (4Gbps), the EVAFLEX@ 5-SE-G VT connector is an indispensable connectivity solution for high-performance electronic devices.
