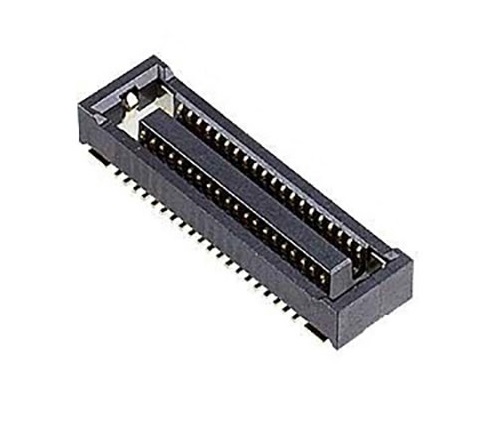

I-PEX 20843-050E-21 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20843-050E-21 | |
| Product Description | NOVASTACK 35-PH RECEPTACLE 50P,50 pos Connector Receptacle, center with contacts Surface mount type Gold plated. |
I-PEX 20843-050E-21 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | I-PEX |
| range | NOVASTACK® 35-PH |
| wrap | Tape and Reel (TR) |
| Connector Type | Receptacle, Center with Contacts |
| pin position | 50 |
| spacing | 0.014"（0.35mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 3.94µin（0.100µm） |
| Joint Stacking Height | 1.5mm |
| board height | 0.057"（1.46mm） |
I-PEX 20843-050E-21 Connector Product (Series) Description:
The NOVASTACK@ 35-PH is a board-to-board (FPC) connector with a height of only 1.5mm for compact electronic devices. Features include a 0.35mm board pitch design with an effective contact wipe length of 0.32mm, ensuring stable signal transmission and power connections. The connector supports vertical docking and features a variety of options from 10 to 50 signal pins plus two power pins, with a signal current rating of 0.3A per pin and a power section that can carry up to 3.0A per pin, making it suitable for applications that require simultaneous signal and power transmission.The NOVASTACK@ 35-PH has a width that can be calculated based on the pin-count formula, a depth of 2.8mm The NOVASTACK@ 35-PH has a small form factor and reliable performance, making it ideal for interconnecting high-density IC boards.
I-PEX 20843-050E-21 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Novastack 35-PH |
I-PEX 20843-050E-21 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
