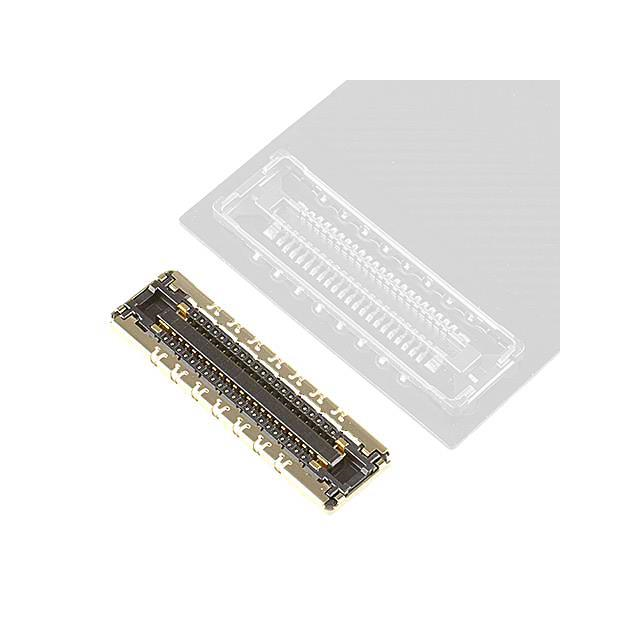

I-PEX 20698-042E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20698-042E-01 | |
| Product Description | NOVASTACK 35-HDP RECEPTACLE 42P; 46 (42 + 4 Power Supply) Location Connector Receptacle, center with contacts Surface mount type Gold plated. |
I-PEX 20698-042E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | I-PEX |
| range | NOVASTACK® 35-HDP |
| wrap | Tape and Reel (TR) |
| Connector Type | Receptacle, Center with Contacts |
| pin position | 46 (42 + 4 power supplies) |
| spacing | 0.014"（0.35mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | block (sth. or sb) |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 3.94µin（0.100µm） |
| Joint Stacking Height | 0.7mm |
| board height | 0.023"（0.59mm） |
I-PEX 20698-042E-01 Connector Product (Series) Profile:
The NOVASTACK@ 35-HDP is a high-speed board-to-board connector that supports data transfer at over 20 Gbps per channel. It is designed with a 0.35 mm pitch and 0.7 mm height for space-constrained applications.
The connectors feature fully shielded signal and power contacts and are rated at 0.3 A for signal contacts and 2.2 A for power contacts. Compatible with a wide range of high-speed interface standards, such as USB4, USB 3.1 Gen 2, and HDMI 2.0, the connectors are suitable for use in high-performance electronic devices, such as portables and monitors, to ensure stable and fast data transmission.
I-PEX 20698-042E-01 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Novastack 35-HDP |
I-PEX 20698-042E-01 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
