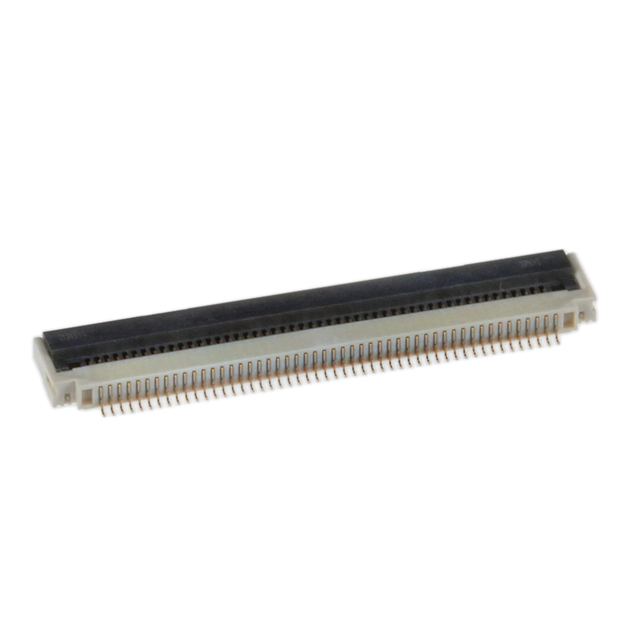

Hirose TF31-50S-0.5SH(800) connector product overview:
 | Manufacturer | Hirose |
| Manufacturer Part Number | TF31-50S-0.5SH(800) | |
| Product Description | CONN FFC BOTTOM 50POS 0.5MM R/A, 50 positions FFC, FPC connector contact, bottom 0.020" (0.50mm) surface mount, right angle |
Hirose TF31-50S-0.5SH(800) connector product attributes:
| Type | describe |
| Category | Connector, interconnection device |
| FFC, FPC (Flat Flexible Connector) Connector | |
| FFC, FPC (Flexible Flat Cable) connector components | |
| Manufacturer | Hirose Electric Co Ltd |
| Series | TF31 |
| Packaging | Coil (TR) |
| Flat flexible type | FFC，FPC |
| Installation Type | Surface mount, right angle |
| Connector/contact type | Contact, bottom |
| Needle count | 50 |
| Spacing | 0.020"（0.50mm） |
| Terminal block | Welding |
| FFC, FCB thickness | 0.30mm |
| Board height | 0.079"（2.00mm） |
| Lock function | Trigger lock |
| Cable end type | Soldering sheet |
| Contact material | Phosphor bronze |
| Contact surface treatment | Gold plated |
| Outer shell material | Liquid Crystal Polymer (LCP) |
| Actuator materials | Liquid Crystal Polymer (LCP) |
| Feature | Zero Insertion Force (ZIF) |
| Rated voltage | 50V |
| Operating temperature | -40°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Rated Current (Ampere) | 0.5A |
| Touch probe surface treatment thickness | 1.25µin（0.03µm） |
| Outer color | Beige |
| Actuator color | Black |
| Matching times | 20 |
Hirose TF31-50S-0.5SH(800) connector product (series) introduction:
The TF31 series is a high-density FFC/FPC connector launched by Hirose Electric Co Ltd, specifically designed for thin and light electronic devices, featuring excellent spatial adaptability and connection reliability. This product has 50 pin positions with a 0.50mm pitch, supports FFC/FPC with a thickness of 0.30mm, uses surface mount right-angle structure, and has a board height of only 2.00mm, making it very suitable for applications with strict height restrictions. The TF31 is equipped with zero insertion force (ZIF) design, combined with a trigger locking mechanism, making insertion and removal easier and the connection more stable. The bottom contact structure and焊片式 cable end design improve conductivity and assembly efficiency. The contact is made of phosphor bronze, plated with gold on the surface, effectively improving corrosion resistance and conductivity. The housing and actuator are made of LCP material, with a UL94 V-0 flame retardant rating, suitable for operating environments of -40°C to 105°C. The rated current is 0.5A, the rated voltage is 50V, and it supports 20 reliable mating cycles. The TF31 series is widely used in portable electronics, consumer electronics, industrial control, and other fields, and is an ideal choice for high-performance connection solutions.
Hirose TF31-50S-0.5SH(800) connector documentation and media:
| Resource type | Link |
| Specification Sheet | TF31 Series Datasheet |
Hirose TF31-50S-0.5SH(800) connector genuine | replacement product related information:
We focus on the spot supply of Hirose brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
