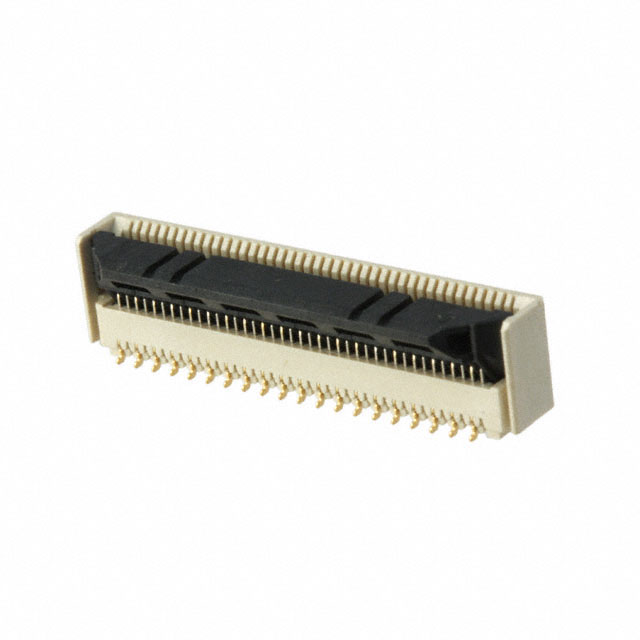

Hirose FH40-40S-0.5SV connector product overview:
 | Manufacturer | Hirose |
| Manufacturer's part number | FH40-40S-0.5SV | |
| Product Description | CONN FPC VERT 40POS 0.5MM SMD, 40 position FPC connector contact, vertical - single-sided 0.020" (0.50mm) surface mount type |
Hirose FH40-40S-0.5SV connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| FFC, FPC (Flat Flexible Connector) Connector | |
| FFC, FPC (Flexible Flat Cable) connector components | |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH40 |
| Packaging | Coil (TR) |
| Flat flexible types | FPC |
| Installation Type | Surface Mount Technology |
| Connector/terminal type | Contact, vertical - one-sided |
| Needle count | 40 |
| spacing | 0.020"（0.50mm） |
| Terminal connection | welding |
| FFC, FCB thickness | 0.30mm |
| Board height | 0.228"（5.80mm） |
| Locking function | Trigger lock |
| Cable terminal type | Soldering sheet |
| Contact material | Phosphor bronze |
| Contact surface treatment | Gold-plated |
| Outer shell material | Liquid crystal polymer (LCP) |
| Actuator materials | Liquid crystal polymer (LCP) |
| Rated voltage | 50V |
| Working temperature | -40°C ~ 105°C |
| Material combustibility rating | UL94 V-0 |
| Rated Current (Ampere) | 0.5A |
| Surface treatment thickness of the contact surface | 2.00µin（0.051µm） |
| Shell color | Beige |
| Actuator color | Black |
| Matching times | 20 |
Introduction to Hirose FH40-40S-0.5SV connector product (series)
The FH40 series is a high-precision FPC (Flexible Printed Circuit) connector launched by Hirose Electric Co Ltd, suitable for electronic devices with strict requirements for space and performance. This series is designed with 40 pin positions and a 0.50mm pitch, supporting 0.30mm thick FPCs, making it suitable for high-density wiring requirements. The FH40 is a surface mount type with a vertical single-sided contact structure, featuring trigger locking function to ensure firm FPC connection. The contacts are made of phosphor bronze material and are gold plated, offering excellent conductivity and strong wear resistance. The connector housing and actuator are both made of liquid crystal polymer (LCP), with a UL94 V-0 flame retardant rating, ensuring safety and reliability. The product rated current is 0.5A, rated voltage 50V, applicable temperature range from -40°C to 105°C, and compatible with up to 20 mating cycles, suitable for various application scenarios such as industrial control, consumer electronics, and automotive systems. The FH40 series combines compact size and excellent performance, making it an ideal choice for high-reliability FPC connection solutions.
