Categorization：Product Information
I-PEX®'s new CABLINE®-VS II 0.5 mm pitch very thin coaxial cable connector with 360 degree shielding to prevent EMI leakage and a height of only 1.3 mm max, the VESA-compliant CABLINE®-VS female chassis connector can be mounted on PCBs of the same design. The connectors have all the same features as our best-selling CABLINE®-CA II and CABLINE®-CA II Plus.
Fully shielded, self-contained mechanical latch for high speed data transfer (20 Gbps/lane), 0.5 mm pitch, horizontal plug-in very fine coaxial connectors ZenShield® is fully shielded and multi-point grounded to prevent EMI leakageMechanical latch cover prevents connectors from improperly seating and disconnectingHigh Speed Transmission, Thunderbolt 3 (20 Gbps/lane) applicationsIdeal for applications where the pin count is 20 30 40 very fine coaxial connectors Ideal for Thunderbolt 3 (20Gbps/lane) applicationsPitch (mm): 0.500Height: 1.20 MaxPins available: 20 30 40Awg: #36 #38 #40 #42 #44 #46Mounting Type: Horizontal
ZenShield® is fully shielded and multi-point grounded to prevent EMI leakage.
Mechanical locking cover prevents incomplete mating and disconnection of connectors
High-speed transmission, ideal for Thunderbolt 3 (20 Gbps/lane) applications

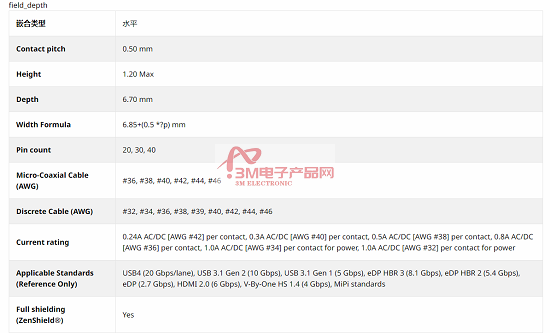

Technical Parameters
model number
About I-PEXCABLINE®-VS II 0.5 mm pitch Extremely Fine Coaxial Wire Connector Purchase, Sales and Marketing:
