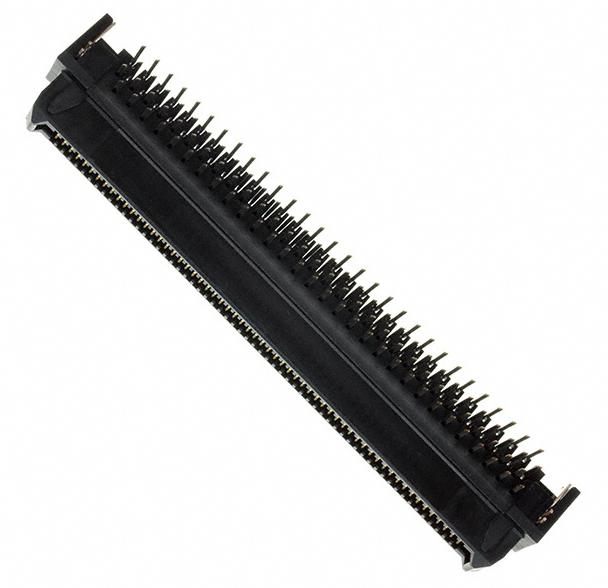

JAE TX24-120R-LT-H1E Connector Product Overview:
 | makers | JAE |
| Manufacturer's Code | TX24-120R-LT-H1E | |
| Product Description | CONN RCPT 120POS R/A GOLD,120 pos Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold Plated |
JAE TX24-120R-LT-H1E Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | TX24 |
| Connector Type | Receptacle, Covered Contacts |
| pin position | 120 |
| spacing | 0.050"（1.27mm） |
| number of items, etc. in a total | 2 |
| Installation type | Through Hole, Right Angle |
| characterization | plank used to cover nail holes in cypress bark roofing |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Splice Stack Height | - |
| board height | 0.354"（9.00mm） |
| Basic Product Number | TX24-120 |
JAE TX24-120R-LT-H1E Connector Product (Series) Description:
JAE Electronics' TX24 Series Rectangular Connector is a high-performance array, edge-type, mezzanine (board-to-board) connector designed for demanding applications. The connector features a receptacle shell contact design with 120 pin positions, 0.050" (1.27mm) pitch, and 2 rows to ensure stable data transmission and high reliability.The TX24 series connectors support through-hole right-angle mounting with board-locking features to enhance the stability of the connector. The contacts are gold plated to a thickness of 4.00µin (0.100µm), which prevents oxidation and abrasion and extends service life. The connector has an on-board height of 0.354" (9.00mm), making it suitable for a wide range of circuit designs and meeting different height requirements. As a high quality interconnect device, TX24-120 provides high precision and high reliability connectivity solutions for a wide range of applications in communications, industrial control, automotive electronics and other fields.
