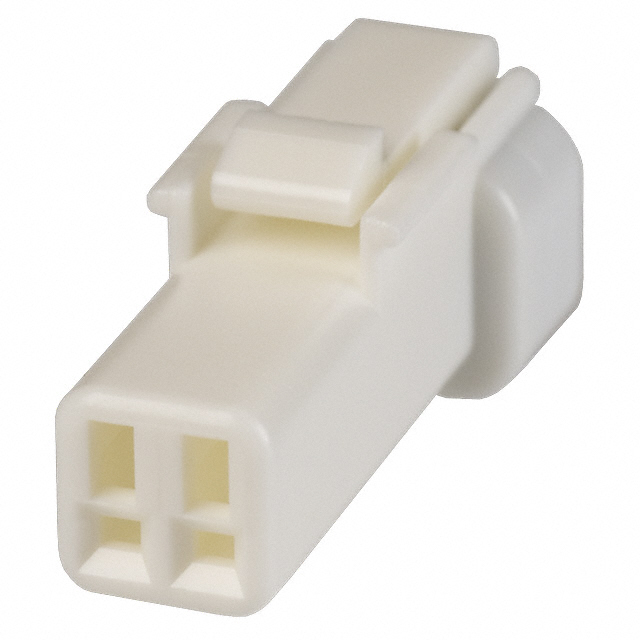

JST Connectors - Provides an overview of JST 02R-JWPF-VSLE-S connector products:
 | makers | JST |
| Manufacturer's Code | 02R-JWPF-VSLE-S | |
| Product Description | CONN RCPT HSG 2POS 2.00MM,2 Rectangular Connector - Housing Receptacle Natural 0.079" (2.00mm) |
JST Connectors - Offers JST 02R-JWPF-VSLE-S connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | JST |
| range | JWPF |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 2 |
| spacing | 0.079"（2.00mm） |
| number of sets (of clothes, etc.) | 1 |
| leading | - |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| characterization | JIS C 0920 Class 7 |
| insulating material | Polybutylene terephthalate (PBT) |
| operating temperature | -55°C ~ 85°C |
| note | without contacts |
| Basic Product Number | 02R-JWPF |
JST Connectors - Provides an overview of JST 02R-JWPF-VSLE-S connector products (series):
The JST 02R-JWPF-VSLE-S Rectangular Connector Housing is a highly reliable 2-position receptacle type connector for compact connectivity needs in a variety of electronic devices. It is part of the JST JWPF series and features a 2.00mm pitch design with a single row of female sockets for stable electrical connections. It is mounted in a free-hanging and pin-locking structure to ensure stability and safety during plugging and unplugging. The connector shell is made of high-strength PBT insulating material with good heat and chemical resistance, and can be operated stably in a temperature range of -55°C to 85°C. The connector is also compliant with JIS C 09, and has a single row of female sockets for stable electrical connections. In addition, the product complies with JIS C 0920 Class 7 standards and excels in dustproof and waterproof performance, making it suitable for applications in harsh environments.JST 02R-JWPF-VSLE-S is suitable for use in industrial automation, automotive electronics, and consumer electronics, providing a reliable, compact, and durable connection solution for devices. Note that this product does not include contacts, so you will need to purchase matching terminals separately to complete the connection.
JST Connectors - Provides JST 02R-JWPF-VSLE-S connector documentation and media:
| Resource type | link (on a website) |
| specification | JWPF Series (Wire-to-Wire) |
JST Connectors - Provide instructions related to JST 02R-JWPF-VSLE-S Connector Genuine | Alternatives:
We specialize in stocking (JST) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
