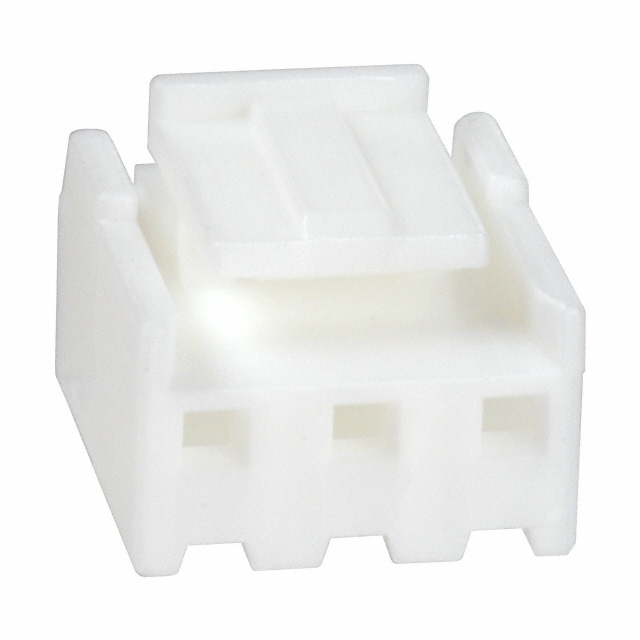

TE 1-1123722-3 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 1-1123722-3 | |
| Product Description | CONN PLUG HSG 3POS 3.96MM, 3 Rectangular Connector - Shell Plug Natural 0.156" (3.96mm) |
TE 1-1123722-3 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | Economy Power |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | plug |
| Contact type | Female Sockets |
| pin position | 3 |
| spacing | 0.156"（3.96mm） |
| number of sets (of clothes, etc.) | 1 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | natural |
| insulating material | Polyamide (PA66), Nylon 6/6 |
| operating temperature | -25°C ~ 105°C |
| note | without contacts |
| Basic Product Number | 1123722 |
TE 1-1123722-3 Connector Product (Series) Profile:
TE Connectivity AMP Connectors introduced Economy Power Series rectangular connectors is a cost-effective solution designed for electrical connections. The connector is a 3-pin plug type with a pitch of 3.96 mm and a single-row layout with crimp termination to ensure a robust connection and easy handling. The housing materials are polyamide (PA66) and nylon 6/6, which provide good high-temperature resistance and excellent electrical isolation, enabling stable operation over a wide temperature range from -25°C to 105°C. The free-hanging mounting system allows the connector to be used in a wide range of applications. The free-hanging mounting method makes the connector more flexible for application in a wide range of equipment and adapts to the needs of different scenarios. In addition, the connector's fastening method adopts a pin-lock design, which effectively enhances the firmness of the connection and prevents loosening. The product does not include contacts and is suitable for customized contact configurations according to different needs.Economy Power series is widely used in consumer electronics, industrial control, automotive and other fields, and has become an ideal choice for electrical connection due to its durability and high cost performance.
TE 1-1123722-3 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | EP Conn Instr Sheet |
TE 1-1123722-3 Connector Connector Genuine|Replacement Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
