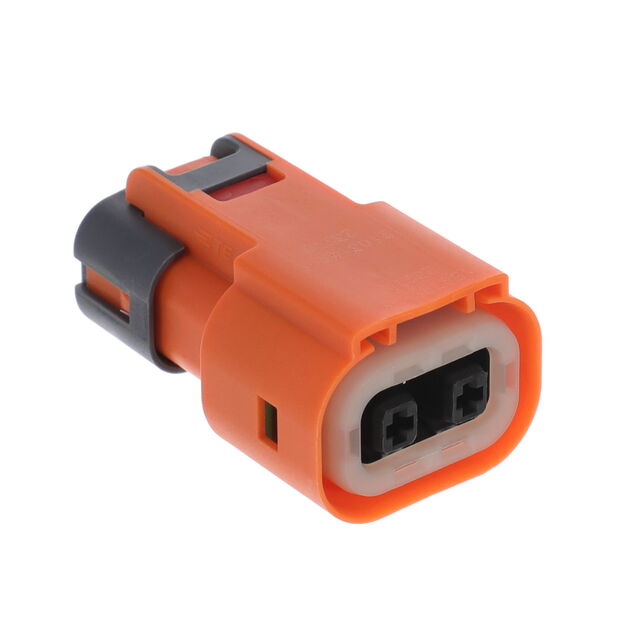

TE 2103149-1 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 2103149-1 | |
| Product Description | PLUG, HVIL ONLY, KEY A, HVA280-2, 2 Rectangular Connector - Shell Receptacle Orange 0.409" (10.40mm) |
TE 2103149-1 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | HVA 280 |
| wrap | draft (of beer, as opposed bottled) |
| Connector Type | sockets |
| Contact type | Female Sockets |
| pin position | 2 |
| spacing | 0.409"（10.40mm） |
| number of sets (of clothes, etc.) | 1 |
| Installation type | Surface Mount |
| contact termination | cladding |
| Fastening type | Latch Holder |
| color | orange color |
| characterization | Connector Position Assertion (CPA) |
| insulating material | Polyamide (PA), Nylon, Glass Fiber Reinforced |
| operating temperature | -40°C ~ 140°C |
| Basic Product Number | 2103149 |
TE 2103149-1 Connector Product (Series) Profile:
TE Connectivity AMP Connectors introduces the HVA 280 series rectangular connector housing, a high-performance product designed for high-voltage systems used in a wide range of electric and hybrid vehicles and other industrial electrical equipment. This model is a **receptacle type** with a **female socket** design that supports **2 pin positions** with a pin pitch of **0.409" (10.40mm)** for high-voltage circuit applications. Its **surface-mount type mounting** and **latch standoff fastening** structure provide excellent stability and ease of use. The **crimp termination** method ensures efficient and reliable electrical connections. The connectors are made of **glass fiber reinforced polyamide (PA, nylon)** material, which provides high strength and excellent heat resistance for stable operation in **-40°C to 140°C**. The product is equipped with the **Connector Position Assurance (CPA)** feature, which further enhances the reliability of the connection and prevents disconnection. The classic **orange design** makes it clearly recognizable in high-voltage systems, and it is available in bulk under the basic part number **2103149**. The HVA 280 series is ideal for high-voltage connections, combining safety with high performance.
TE 2103149-1 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Please contact the contact person at the bottom of the article page for a copy |
TE 2103149-1 Connector Connector Genuine|Replacement Related Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
