Categorization：Brand Connector

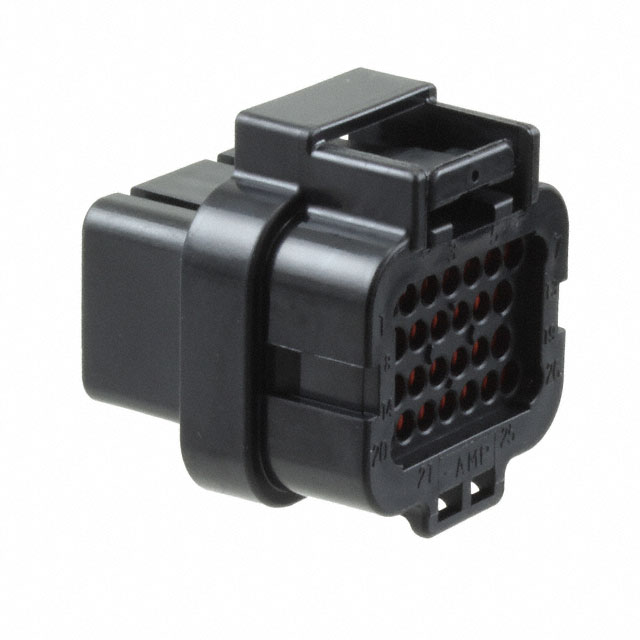

TE 3-1437290-7 Connector Product Overview:
 | makers | TE |
| Manufacturer's Code | 3-1437290-7 | |
| Product Description | CONN PLUG HSG 26POS 3.00MM, 26 Rectangular Connector - Shell Plug Black 0.118" (3.00mm) |
TE 3-1437290-7 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Rectangular Connector Shells | |
| makers | TE Connectivity AMP Connectors |
| range | Superseal |
| wrap | fitting |
| Connector Type | plug |
| Contact type | Female Sockets |
| pin position | 26 |
| spacing | 0.118"（3.00mm） |
| number of sets (of clothes, etc.) | 4 |
| Installation type | free hanging |
| contact termination | cladding |
| Fastening type | pin lock |
| color | ferrous |
| insulating material | Thermoplastic, Polyester |
| operating temperature | -40°C ~ 125°C |
| note | without contacts |
| Basic Product Number | 1437290 |
TE 3-1437290-7 Connector Product (Series) Profile:
The Superseal Series rectangular connector housing from TE Connectivity AMP Connectors is a high-density plug-style connector designed for electrical connection needs in harsh environments. The product has 26 female jack pin positions in a 4-row design with a 3.00mm (0.118") pin spacing, supports free-hanging mounting methods, and is terminated by crimp to ensure efficient and consistent electrical performance. The housing is made of thermoplastic and polyester materials with excellent heat resistance and durability, capable of maintaining reliable performance in temperatures ranging from -40°C to 125°C. The housing is also available with a 3.00mm (0.118") pitch. Its classic black design, combined with pin-lock fastening, provides a strong, secure connection for a wide range of industrial and outdoor applications. This model (base part number 1437290) does not include contacts and is packaged in tubing for high-volume use.With its high-density design and reliable performance, the Superseal series is the solution of choice for engineers building high-quality interconnect systems in automotive, electrical equipment, and industrial automation applications.
TE 3-1437290-7 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Superseal Conn 1.0MM-Auto Cat |
TE 3-1437290-7 Connector Connector Genuine|Replacement Related Description:
We specialize in stocking (TE) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
