Panasonic Connectors - Provides an overview of Panasonic AXK6S20547YG Connector products:
 | makers | Panasonic |
| Manufacturer's Code | AXK6S20547YG | |
| Product Description | CONN HDR 20POS SMD GOLD, 20 pos Connector Header, Outer Shroud Contacts Surface Mount Gold Plated |
Panasonic Connectors - Offers Panasonic AXK6S20547YG connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | Panasonic |
| range | P5KS |
| Connector Type | Header, Outer Shroud Contacts |
| pin position | 20 |
| spacing | 0.020"（0.50mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | - |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | - |
| Splice Stack Height | 5mm，5.5mm，8mm |
| board height | 0.169"（4.30mm） |
| Basic Product Number | AXK6S20547 |
Panasonic Connectors - Offers Panasonic AXK6S20547YG Connector product (series) profiles:

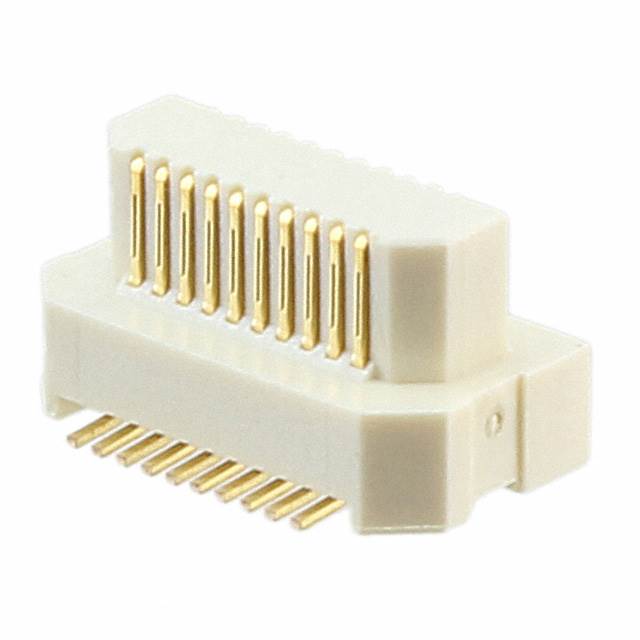

The Panasonic AXK6S20547YG is a 20-position surface mount connector from the Panasonic Electric P5KS series designed for high-density connectivity needs. The connector features a header, outer shell contact format with 2 rows of 20 pins and a pin pitch of 0.50mm, making it suitable for a wide range of compact electronic devices. Its gold-plated contact finish ensures excellent electrical conductivity and corrosion resistance, ensuring stable electrical contact over time.The AXK6S20547YG connectors are available in three mating stack heights (5mm, 5.5mm, 8mm) and have an on-board height of 4.30mm, enabling flexible mounting in a variety of application environments. The surface mount (SMD) design makes the connector suitable for automated soldering, which makes it easy to improve productivity. As a high-precision, high-reliability connector, the AXK6S20547YG is widely used in communications, computers, and consumer electronics, especially in scenarios requiring high-speed signal transmission and miniaturized designs.
Panasonic Connectors - Provides Panasonic AXK6S20547YG connector documentation and media:
| Resource type | link (on a website) |
| specification | Please contact the contact person at the bottom of the article page for a copy |
Panasonic Connectors-Provide description of Panasonic AXK6S20547YG Connector Genuine|Replacement:
We specialize in the stock supply of (Panasonic) brand connectors and are committed to providing customers with quality and reliable connection solutions. Our products include genuine and high performance alternatives, which have been rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
