Panasonic Connectors - Provides an overview of Panasonic AXK5S20347YG Connector products:
 | makers | Panasonic |
| Manufacturer's Code | AXK5S20347YG | |

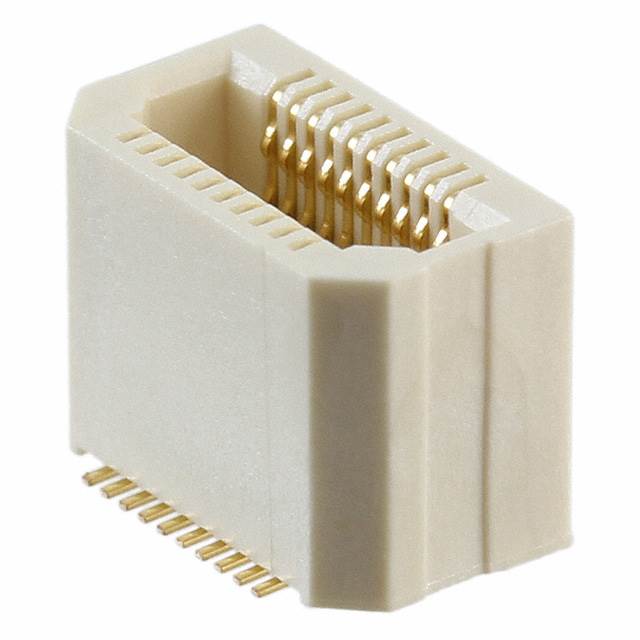

| Product Description | CONN SOCKET 20POS SMD GOLD, 20 pos Connector Socket, Center Contact Strip Surface Mount Gold Plated |
Panasonic Connectors - Offers Panasonic AXK5S20347YG connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | Panasonic |
| range | P5KS |
| Connector Type | Socket, Center Contact Strip |
| pin position | 20 |
| spacing | 0.020"（0.50mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | - |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | - |
| Joint Stacking Height | 7mm，8mm，9mm |
| board height | 0.238"（6.05mm） |
| Basic Product Number | AXK5S20347 |
Panasonic Connectors - Offers Panasonic AXK5S20347YG Connector product (series) profiles:
The Panasonic AXK5S20347YG is a 20-position surface mount connector from the Panasonic Electro-Mechanics P5KS series, featuring a socket, center contact strip format designed for high-density circuit boards. The connector has 2 rows of 20 pins with a pitch of 0.50mm, which provides a stable electrical connection in a compact space and is suitable for high-precision electronic applications.The surface contacts of the AXK5S20347YG connector have been gold-plated to ensure good electrical conductivity and resistance to corrosion, which effectively improves the durability and long-term stability of the connector. Its mating stack height can be selected from 7mm, 8mm, 9mm, with an on-board height of 6.05mm, adapting to different design requirements. The surface mount type (SMD) design makes the AXK5S20347YG suitable for automated soldering, which can greatly improve productivity, especially in high-speed signal transmission and miniaturized design applications. The connectors are widely used in communications, computers, consumer electronics and other fields, making them an ideal connection solution for high-end electronic devices.
Panasonic Connectors - Provides Panasonic AXK5S20347YG connector documentation and media:
| Resource type | link (on a website) |
| specification | Please contact the contact person at the bottom of the article page for a copy |
Panasonic Connectors-Provide description of Panasonic AXK5S20347YG Connector Genuine|Replacement:
We specialize in the stock supply of (Panasonic) brand connectors and are committed to providing customers with quality and reliable connection solutions. Our products include genuine and high performance alternatives, which have been rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
