Panasonic Connectors - Provides an overview of Panasonic AXK6S30647YG Connector products:
 | makers | Panasonic |
| Manufacturer's Code | AXK6S30647YG | |
| Product Description | CONN HDR 30POS SMD GOLD, 30 pos Connector Header, Outer Shroud Contacts Surface Mount Gold Plated |
Panasonic Connectors - Offers Panasonic AXK6S30647YG connector product attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | Panasonic |
| range | P5KS |
| Connector Type | Header, Outer Shroud Contacts |
| pin position | 30 |
| spacing | 0.020"（0.50mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | - |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | - |
| Splice Stack Height | 6mm，6.5mm，9mm |
| board height | 0.209"（5.30mm） |
| Basic Product Number | AXK6S30647 |
Panasonic Connectors - Offers Panasonic AXK6S30647YG Connector product (series) profiles:

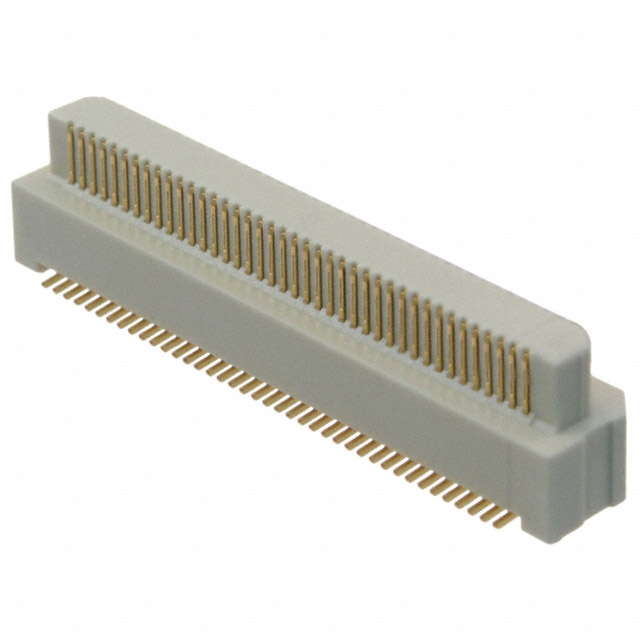

The Panasonic AXK6S30647YG is a 30-position surface mount connector from the Panasonic Electro-Mechanics P5KS series designed for high-density, high-performance electrical connections. The connector features 2 rows of 30 pins with a 0.50mm pin pitch in a header, shell contact format for high-density connectivity needs on compact circuit boards.The contact surfaces of the AXK6S30647YG connector are gold-plated to ensure excellent electrical conductivity and corrosion resistance, and to provide stable electrical contact. Its mating stack heights of 6mm, 6.5mm, and 9mm and on-board height of 5.30mm are available to meet diverse installation needs. As a surface mount (SMD) connector, the AXK6S30647YG can be efficiently mounted through automated soldering technology to enhance productivity. Its design is particularly suitable for applications requiring high-speed signal transmission and high-density interconnections, such as communications equipment, computer hardware and precision electronics, making it an ideal choice for high-end connectivity solutions.
Panasonic Connectors - Provides Panasonic AXK6S30647YG connector documentation and media:
| Resource type | link (on a website) |
| specification | Please contact the contact person at the bottom of the article page for a copy |
Panasonic Connectors-Provide description of Panasonic AXK6S30647YG Connector Genuine|Replacement:
We specialize in the stock supply of (Panasonic) brand connectors and are committed to providing customers with quality and reliable connection solutions. Our products include genuine and high performance alternatives, which have been rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the document page!
