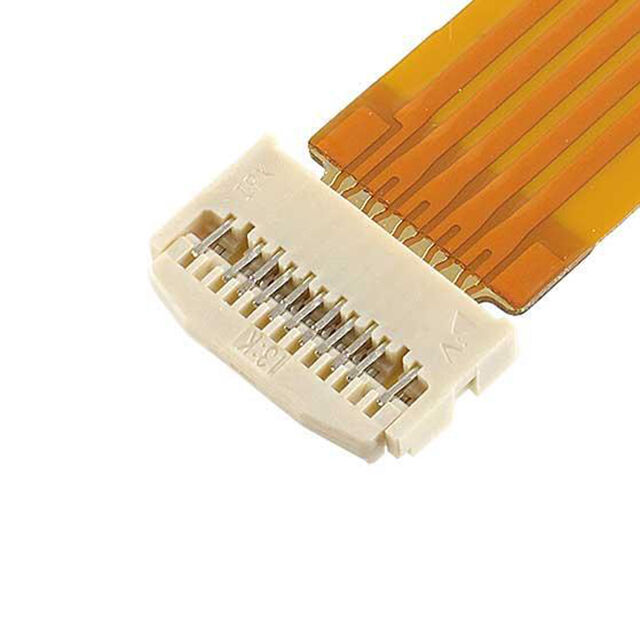

I-PEX 20584-061E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20584-061E-01 | |
| Product Description | MINIFLEX 3-BFN LK 61P, 61 pos FFC, FPC Connector Contacts, Top 0.024" (0.60mm) Surface Mount, Right Angle . |
I-PEX 20584-061E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 3-BFN LK |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| pin position | 61 |
| spacing | 0.024"（0.60mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.20mm |
| board height | - |
| lockout function | trigger lock |
| Cable End Type | Solder Lug, Tapered |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.3A |
| Contact surface treatment thickness | 3.94µin（0.10µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20584-061E-01 Connector Product (Series) Description:
The MINIFLEX@ 3-BFN LK Mechanical Latch is a low-back connector designed for high-density connections, boasting a height of only 0.9mm for FPC/FFC cables with 0.3mm pitch. The connector supports horizontal plugging and unplugging and features a back-locking design to ensure a robust and reliable connection. Features include short/long operator options to accommodate a wide range of application scenarios, and good wipe length at both the top and bottom of the contact point for enhanced contact stability. The product's contact thickness is 0.2mm ± 0.03mm, and in terms of dimensions, the width can be adjusted according to the number of pins, with a width of 2.55mm when open and 3mm when closed.
