Categorization：Brand Connector

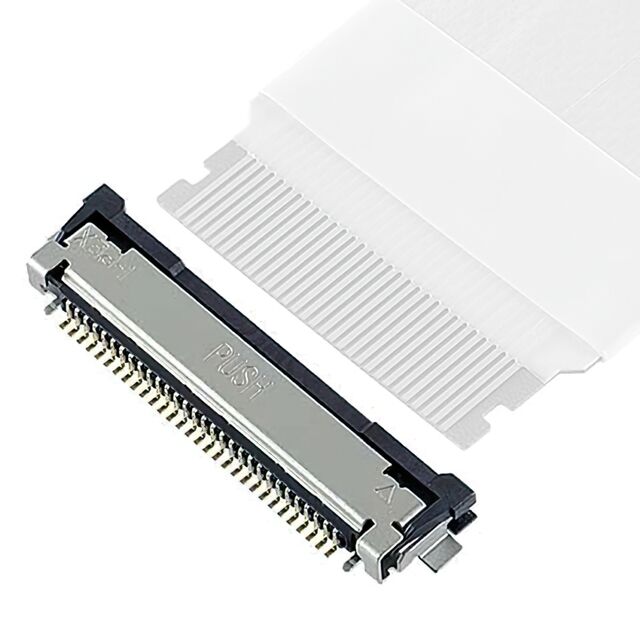

I-PEX 20720-010E-02 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20720-010E-02 | |
| Product Description | EVAFLEX 5-VS, 10P, 10 pos FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
I-PEX 20720-010E-02 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | EVAFLEX® 5-VS |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Upper and Lower |
| pin position | 10 |
| spacing | 0.020"（0.50mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.33mm |
| board height | 0.075"（1.90mm） |
| lockout function | - |
| Cable End Type | Notched, Tapered |
| Contact Material | copper alloy |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | - |
| characterization | fixed brackets |
| rated voltage | 200VAC/DC |
| operating temperature | -40°C ~ 105°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.3A |
| Contact surface treatment thickness | 1.25µin（0.03µm） |
| Housing Color | ferrous |
| Actuator Color | - |
| Number of mating times | 30 |
I-PEX 20720-010E-02 Connector Product (Series) Description:
EVAFLEX 5-VS is a self-locking FFC/FPC connector that supports high temperature (105°C) and high speed transmission. Its 0.5 mm pitch design is suitable for compact arrangements and is compatible with shielded and unshielded FFC/FPC to ensure signal stability. The connector has a wipe length of 1.1 mm, a contact point at the top, a thickness of 0.33 mm, and an outline dimension of 6.25 mm wide plus 0.5x board thickness and 4.95 mm depth. It supports USB 3.1 Gen1, eDP HBR3, HDMI 2.0, and other standards, and has a transmission speed of up to 10-50 Gbps.
Available in pin counts from 10 to 50, they meet USCAR II vibration and shock standards and are widely used in automotive, electronics and communications equipment to provide reliable connectivity solutions.
I-PEX 20720-010E-02 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Evaflex 5-VS |
I-PEX 20720-010E-02 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
