I-PEX 20588-010E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20588-010E-01 | |

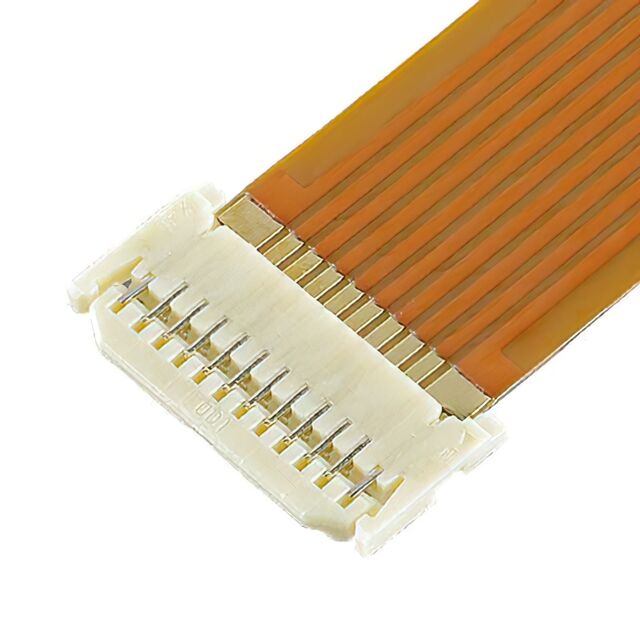

| Product Description | MINIFLEX 4-ST, 10P, 10 pos FFC, FPC Connector Contacts, Top 0.016" (0.40mm) Surface Mount, Right Angle |
I-PEX 20588-010E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| makers | I-PEX |
| range | MINIFLEX® 4-ST |
| wrap | Tape and Reel (TR) |
| Flat flexible type | FFC，FPC |
| Installation type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| pin position | 10 |
| spacing | 0.016"（0.40mm） |
| nock (of a bow) | soldered |
| FFC, FCB Thickness | 0.12mm |
| board height | 0.020"（0.50mm） |
| lockout function | Flip Lock, Back Lock |
| Cable End Type | Notched, Tapered |
| Contact Material | phosphor bronze |
| Contact surface treatment | gilt |
| Housing Material | Liquid Crystal Polymers (LCP) |
| Actuator Materials | Liquid Crystal Polymers (LCP) |
| characterization | fixed brackets |
| rated voltage | 50V |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Rated current (amps) | 0.4A |
| Contact surface treatment thickness | 1.25µin（0.03µm） |
| Housing Color | rice-colored |
| Actuator Color | rice-colored |
| Number of mating times | 20 |
I-PEX 20588-010E-01 Connector Product (Series) Description:
The MINIFLEX@ 4-ST connector is an ultra low-profile design connector with a thickness of only 0.5 mm for FPC/FFC connections with 0.4 mm pitch. Its horizontal insertion and reverse flip design allows for a more stable connection and significant space savings. The connector's contact point length of 0.8 mm ensures good contact. Its width is calculated according to the formula 1.9+(0.4*number of pins) for adaptability, and its depth is 2.7 mm in the open state and 3.0 mm when closed. 4, 6, 8, 10 or 12 pins can be selected as required to meet the needs of a wide range of application scenarios.
