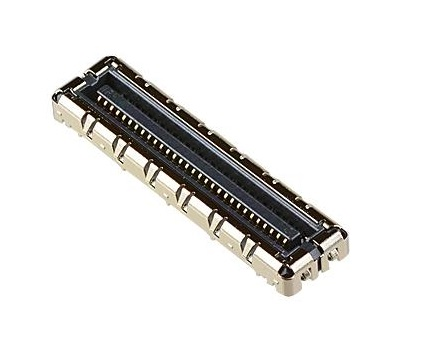

I-PEX 21004-070E Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 21004-070E | |
| Product Description | NOVASTACK 35-HDH RECEPTACLE 70P, 70 pos Connector Receptacle, center with contacts Surface mount type Gold plated. |
I-PEX 21004-070E Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | I-PEX |
| range | NOVASTACK® 35-HDP |
| wrap | Tape and Reel (TR) |
| Connector Type | Receptacle, Center with Contacts |
| pin position | 70 |
| spacing | 0.014"（0.35mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 5.12µin（0.130µm） |
| Joint Stacking Height | 1.5mm |
| board height | 0.051"（1.30mm） |
I-PEX 21004-070E Connector Product (Series) Description:
The NOVASTACK@ 35-HDH is a high-performance, fully shielded miniature connector designed for high-density electronic devices. With a height of only 1.5 mm and a pitch of 0.35 mm, it has excellent high-frequency transmission capability, supporting high-speed transmission of up to 20 GHz (equivalent to 40 Gbps) per channel. This product is suitable for a variety of high-speed data transmission standards, including USB4 (20 Gbps/channel), USB 3.1 Gen 2 (10 Gbps), HDMI 2.0 (6 Gbps), and more.
The NOVASTACK@ 35-HDH is made of durable, high-end materials and offers excellent current loading capability, with a current capacity of 0.5 A per pin and a total current of up to 12 A. Its contact length of 0.33 mm ensures a stable and reliable signal connection from board to board. Available in 60 and 70 pin options, the series is suitable for a wide range of demanding applications such as high-speed display interfaces and data transmission devices.
I-PEX 21004-070E Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | NOVASTACK-35-HDH |
I-PEX 21004-070E Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
