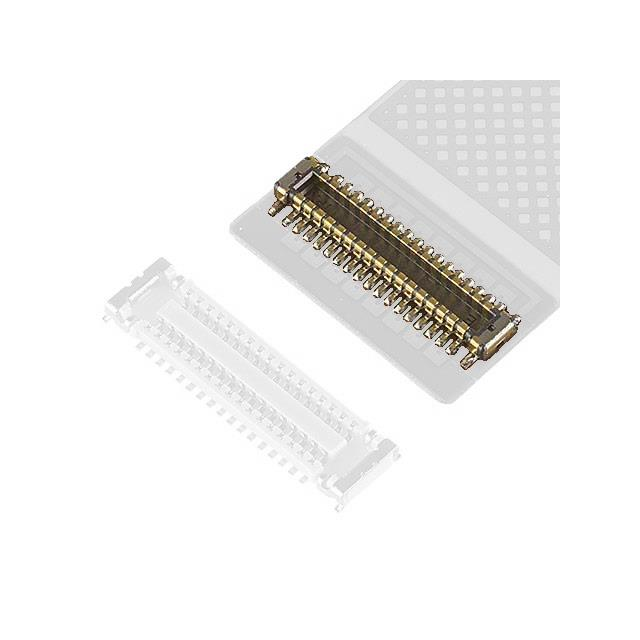

I-PEX 20708-050E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20708-050E-01 | |
| Product Description | NOVASTACK 35-P PLUG 50P, 50 pos Connector Plug, Outer Shroud Contacts Surface Mount Gold Plated. |
I-PEX 20708-050E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | I-PEX |
| range | NOVASTACK® 35-P |
| wrap | Tape and Reel (TR) |
| Connector Type | Plug, Outer Shroud Contacts |
| pin position | 50 |
| spacing | 0.014"（0.35mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Joint Stacking Height | 0.7mm |
| board height | 0.022"（0.57mm） |
I-PEX 20708-050E-01 Connector Product (Series) Description:
The NOVASTACK@ 35-P is a rugged connector with a unique retention feature that utilizes Corson alloy as the primary contact material and is designed for the transmission of power cables. With a pitch of 0.35 mm, a height of only 0.7 mm and a depth of 2.3 mm, it is suitable for applications where space is limited. The product supports 10 to 80 signal pins and 2 power pins, and is capable of carrying 0.3 A per pin for signal and 2.0 A per pin for power, making it suitable for efficient connection of a wide range of devices.
NOVASTACK@ 35-P offers compact size and excellent performance with wipe lengths ranging from 0.13 mm to 0.19 mm, and is available in a wide range of pin counts for a wide range of applications in precision electronics.
I-PEX 20708-050E-01 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Novastack 35-P |
I-PEX 20708-050E-01 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
