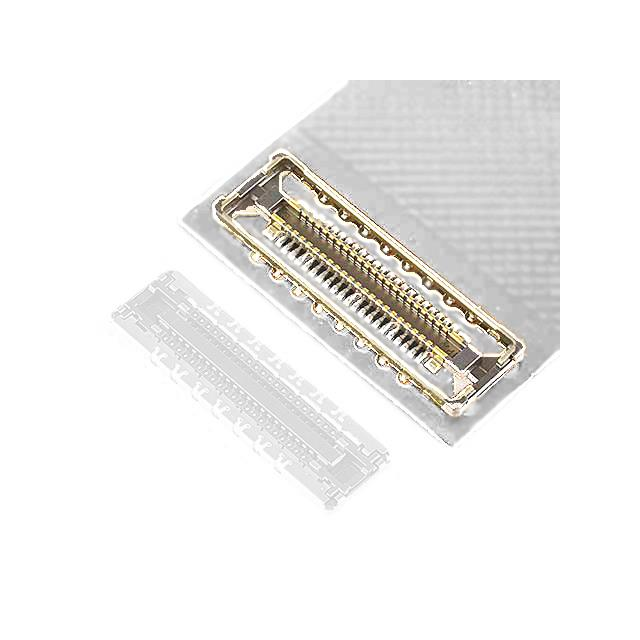

I-PEX 20698-034E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20698-034E-01 | |
| Product Description | NOVASTACK 35-HDP RECEPTACLE 34P, 38 (34 + 4 Power Supply) Location Connector Receptacle, center with contacts Surface mount type Gold plated. |
I-PEX 20698-034E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Array, Edge Type, Mezzanine (Board to Board) | |
| makers | I-PEX |
| range | NOVASTACK® 35-HDP |
| wrap | Tape and Reel (TR) |
| Connector Type | Receptacle, Center with Contacts |
| pin position | 38 (34 + 4 power supplies) |
| spacing | 0.014"（0.35mm） |
| number of items, etc. in a total | 2 |
| Installation type | Surface Mount |
| characterization | block (sth. or sb) |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 3.94µin（0.100µm） |
| Joint Stacking Height | 0.7mm |
| board height | 0.023"（0.59mm） |
I-PEX 20698-034E-01 Connector Product (Series) Description:
The NOVASTACK@ 35-HDP is a high-speed board-to-board connector that supports data transfer at over 20 Gbps per channel. It is designed with 0.35 mm pitch and 0.7 mm height for applications with limited space.
The connectors feature fully shielded signal and power contacts and are rated at 0.3 A for signal contacts and 2.2 A for power contacts. Compatible with a wide range of high-speed interface standards, such as USB4, USB 3.1 Gen 2, and HDMI 2.0, the connectors are suitable for use in high-performance electronic devices, such as portables and monitors, to ensure stable and fast data transmission.
I-PEX 20698-034E-01 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Novastack 35-HDP |
I-PEX 20698-034E-01 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
