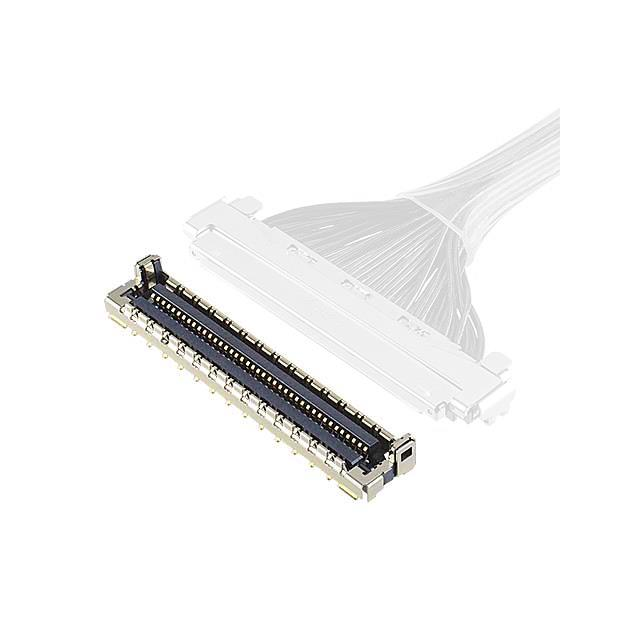

I-PEX 20879-060E-01 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20879-060E-01 | |
| Product Description | CABLINE-UM RECEPTACLE 60P, 60 pos Receptacle Connector Surface Mount, Right Angle Gold Plated |
I-PEX 20879-060E-01 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Header, Receptacle, Female Sockets | |
| makers | I-PEX |
| range | CABLINE®-UM |
| wrap | Tape and Reel (TR) |
| Connector Type | sockets |
| Contact type | Cover Contacts |
| type | Board to Cable/Wire |
| pin position | 60 |
| Number of loaded pin positions | possess |
| Pitch - Mating | 0.016"（0.40mm） |
| number of items, etc. in a total | 2 |
| Spacing - Mating | - |
| Installation type | Surface Mount |
| nock (of a bow) | soldered |
| Fastening type | push-pull |
| Contact Finish - Mating | gilt |
| Contact Finish Thickness - Mating | 1.00µin（0.025µm） |
| Insulation color | ferrous |
| Insulation height | 0.079"（2.00mm） |
| Contact Length - Column | - |
| operating temperature | -40°C ~ 105°C |
| Material flammability class | UL94 V-0 |
| Contact Finish - Column | gilt |
| Joint Stacking Height | - |
| intrusion protection | - |
| characterization | fixed brackets |
| Rated current (amps) | Varies by wire gauge |
| rated voltage | 100VAC |
| appliance | - |
| insulating material | Liquid Crystal Polymers (LCP) |
| Contact shape | rectangles |
| Contact Material | copper alloy |
| Contact Finish Thickness - Column | 1.25µin（0.032µm） |
I-PEX 20879-060E-01 Connector Product (Series) Description:
CABLINE@-UM is a micro-coaxial connector designed for high-speed data transmission with full shielding, multi-point grounding and mechanical locking to ensure transmission stability and security. It supports transmission rates up to 20 Gbps/channel and is compliant with high-speed data transmission standards such as USB4, Thunderbolt 4 and PCIe Gen 4, making it suitable for a wide range of high-speed applications.
With a pin spacing of 0.4 mm and a right-angle vertical connection, CABLINE@-UM offers an excellent space-saving solution. The connector supports micro-coaxial cables up to 0.4 mm OD, is suitable for 45 or 50 ohm signaling requirements, and supports #38 to #42 AWG gauge cables. Its compact design makes it ideal for applications requiring high density and low profile, such as consumer electronics, computer interfaces and display panels. The product is available in a variety of pin counts, including 30, 40, 50 and 60 pins, providing flexibility to adapt to different design requirements. A sophisticated mechanical locking mechanism and protective cover options further enhance durability and reliability.
I-PEX 20879-060E-01 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | CABLINE-UM |
I-PEX 20879-060E-01 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
