I-PEX 20682-040E-02 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20682-040E-02 | |

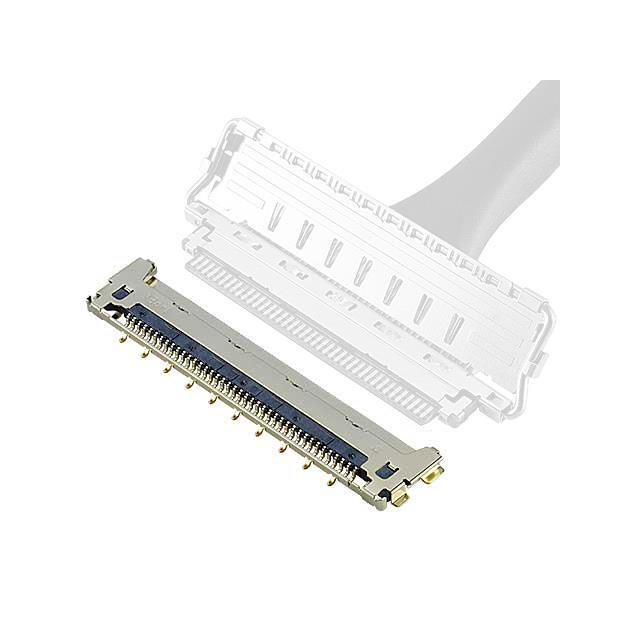

| Product Description | CABLINE-CA II RECEPTACLE 40P, 40 pos Receptacle Connector Surface Mount, Right Angle Gold Plated |
I-PEX 20682-040E-02 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Header, Receptacle, Female Sockets | |
| makers | I-PEX |
| range | CABLINE®-CA II |
| wrap | Tape and Reel (TR) |
| Shear Tape (CT) | |
| Connector Type | sockets |
| type | Board to Cable/Wire |
| pin position | 40 |
| Number of loaded pin positions | 40 |
| number of items, etc. in a total | 1 |
| Installation type | Surface Mount, Right Angle |
| nock (of a bow) | soldered |
I-PEX 20682-040E-02 Connector Product (Series) Profile:
The CABLINE@-CA II is a high performance fully shielded with mechanical locking lateral mating micro-coaxial connector with high data rates and 0.4 mm pitch designed for applications requiring reliable connections and high speed signal transmission.
It is suitable for a wide range of cable connection types, supporting cables up to 0.4 mm OD, and is compatible with micro-coaxial, bi-axial, and discrete cables with 45 Ohm or 50 Ohm impedance. With a signal wipe length of 0.54 mm and a height of only 1.1 mm when connected, the CABLINE@-CA II is suitable for compact space design requirements. CABLINE@-CA II supports the latest industry standards such as USB4, Thunderbolt 4 (up to 20 Gbps per channel), PCIe Gen 4 (16 GT/s), and eDP HBR3 (8.1 Gbps). Available in 20, 30, 40, and 50 pin count options, the series is widely applicable to high-speed data transfer devices. This connector is an ideal solution for scenarios where high-speed data transfer and compact design are stringent requirements in modern electronic devices.
I-PEX 20682-040E-02 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Cabline-CA II |
I-PEX 20682-040E-02 Connector Genuine|Replacement Description:
