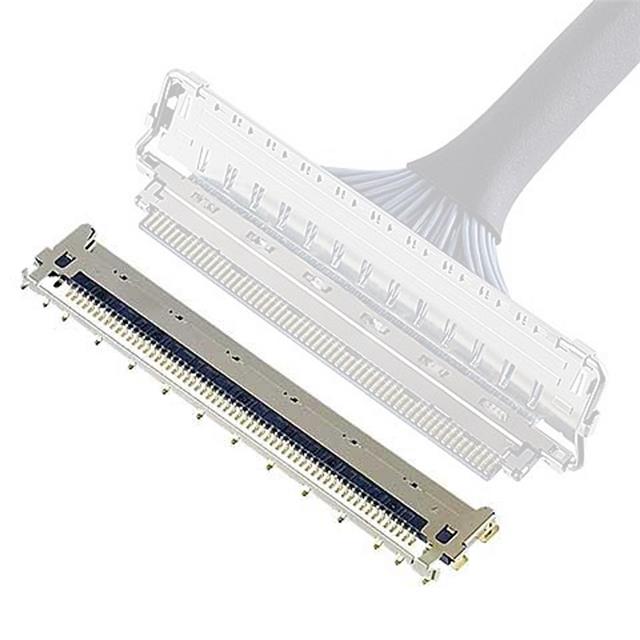

I-PEX 20790-060E-02 Connector Product Overview:
 | makers | I-PEX |
| Manufacturer's Code | 20790-060E-02 | |
| Product Description | CABLINE-CA II PLUS RECEPTACLE 60, 60 pos Receptacle Connector Surface Mount, Right Angle Gold plated. |
I-PEX 20790-060E-02 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular Connectors | |
| Header, Receptacle, Female Sockets | |
| makers | I-PEX |
| range | CABLINE®-CA II PLUS |
| wrap | Tape and Reel (TR) |
| Connector Type | sockets |
| type | Board to Cable/Wire |
| pin position | 60 |
| Number of loaded pin positions | 60 |
| number of items, etc. in a total | 1 |
| Installation type | Surface Mount, Right Angle |
| nock (of a bow) | soldered |
| Fastening type | Latch Holder |
| Contact Finish - Mating | gilt |
| operating temperature | -40°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| characterization | Shielded, Fixed Solder Tail |
| rated voltage | 100V |
I-PEX 20790-060E-02 Connector Product (Series) Description:
CABLINE@_CA II PLUS is a mechanically locked, fully shielded, horizontal mating micro-coaxial connector with 0.4 mm board spacing that supports high speed data transmission up to 64 Gbps. Adapts to #38 or smaller 45 ohm cables, and #40 or smaller 50 ohm cables. Compatible with high-speed standards such as USB4 Gen3, Thunderbolt 4, PCIe Gen 4 and eDP HBR3 for high data rate application scenarios.
For higher data transfer speeds, it is recommended to use with the CABLINE-CA IIP PLUS harness, which is compatible with the existing CABLINE-CA II PLUS socket (20790-060E-01/-02).
I-PEX 20790-060E-02 Connector Documentation and Media:
| Resource type | link (on a website) |
| specification | Cabline-CA II Plus |
I-PEX 20790-060E-02 Connector Genuine|Replacement Description:
We specialize in stocking (I-PEX) brand connectors and are committed to providing our customers with high quality, reliable connectivity solutions. Our products include genuine and high-performance alternatives that are rigorously tested to ensure stability and efficiency. Please feel free to contact us through the contact information below the documentation page!
