Compatible/Replacement Tyco|TE|Tyco Connectors|1761606-3 The wire-to-board connector is a: wire-to-board device for terminating ribbon cables to PC board circuits.AMP-LATCH The collective termination capability of the AMP-LATCH connector series has made ribbon cables popular in the electronics industry. The connector is capable of terminating up to 64 The AMP-LATCH series features three different cable centerline spacings: 0.050 [1.27], 0.039 [1.00], and 0.039 [1.00]. [1.00] and 0.025 [0.64]. Applications include computers/electronics, commercial equipment and medical devices. Key features include: a wide range of sizes available in all configurations; reliable, uniform locking of contacts and housings with covers eliminates cover warpage; easy, visual inspection of end connections during assembly: electrical detectability after assembly; all polymerized parts are manufactured with Unilever-approved 94V-0 rated materials; and sockets with recessed covers provide reliable locking of ejector-type pin fittings with pins; Pinless fittings with gap fits or press fits to 0.025 (0.64) square meters. Posts pre-assembled in pc boards; screen knockout connections exposed to provide RFVEMI protection. [US Dollar Electronics offers Tyco|TE|Tyco Connectors|1761606-3 Wire to Board Connector Replacement].
1, Compatible / alternative Tyco | TE | Tyco Connectors | 1761606-3 wire to board connector products related specifications and parameters:
| Products. | Headers |
| Type. | Shrouded |
| Number of Positions. | 10 Position |
| Pitch. | 2.54 mm |
| Exclusions: 1 | 2 Row |
| Line spacing. | 2.54 mm |
| Mounting Style. | Through Hole |
| Termination Type. | Solder Pin |
| Mounting Angle. | Straight |
| Contact Type. | Pin (Male) |
| Contact Plating. | Gold |
| Length of End Connection Post. | 2.6 mm |
| Series. | AMP-LATCH |
| Trademark Name. | AMP-LATCH |
| Applications. | Wire-to-Board |
| Minimum Operating Temperature. | - 65 C |
| Higher Operating Temperature. | + 105 C |
| Packaging. | Tube |
| Trademark. | TE Connectivity |
| Contact Material. | Phosphor Bronze |
| Flammability Class. | UL 94 V-0 |
| Shell color. | Black |
| Housing material. | Nylon |
| Latch Type. | Ejection |
| Product Type. | Headers & Wire Housings |
| Voltage rating. | 250 V |
| Unit weight. | 2.722 g |

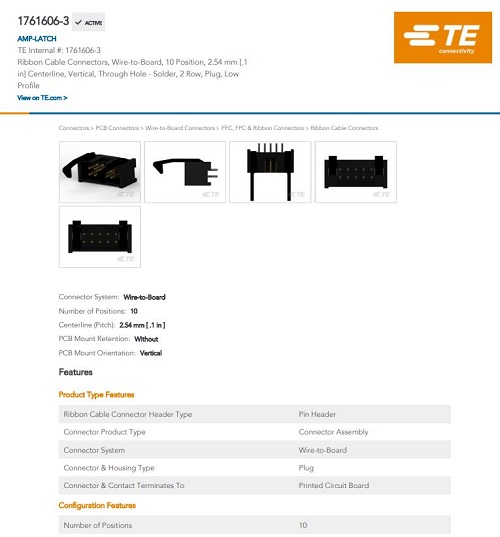

2, Compatible / Alternative Tyco|TE|Tyco Connectors|1761606-3 Wire to Board Connector Product Specification:
3, Compatible / Alternative Tyco | TE | Tyco Connectors | 1761606-3 Wire to Board Connectors Product Part Number / Model Number List:
| 1-1761606-0 | 2-1761606-6 | 1-640456-2 | 2-640456-8 | 1-640457-5 |
| 1-1761606-1 | 2-1761606-7 | 1-640456-3 | 640456-2 | 1-640457-6 |
| 1-1761606-3 | 2-1761606-8 | 1-640456-4 | 640456-3 | 1-640457-8 |
| 1-1761606-5 | 2-1761606-9 | 1-640456-5 | 640456-4 | 2-640457-0 |
| 1-1761606-6 | 3-1761606-1 | 1-640456-6 | 640456-5 | 640457-2 |
| 1761606-3 | 3-1761606-3 | 1-640456-7 | 640456-6 | 640457-3 |
| 1761606-5 | 3-1761606-5 | 1-640456-8 | 640456-7 | 640457-4 |
| 1761606-6 | 3-1761606-6 | 1-640456-9 | 1-640457-0 | 640457-5 |
| 1761606-7 | 3-1761606-7 | 2-640456-0 | 1-640457-1 | 640457-6 |
| 1761606-8 | 1775485-2 | 2-640456-1 | 1-640457-2 | 640457-7 |
| 1761606-9 | 2-1775485-2 | 2-640456-3 | 1-640457-3 | 640457-8 |
| 2-1761606-1 | 3-1775485-2 | 2-640456-4 | 1-640457-4 | 640457-9 |
| 2-1761606-3 | 1-640456-0 | 2-640456-5 | 2-640456-7 | 1-640456-1 |
| 2-1761606-5 |
