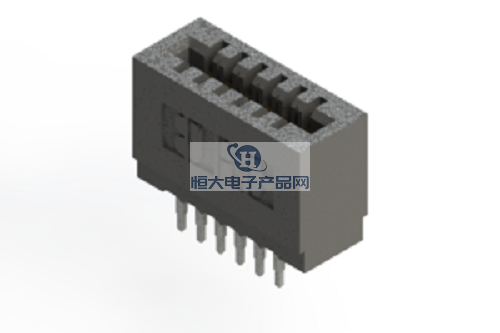

EDAC|EDAC Connectors|Canada/ADAC Electronics 725 Series Press-Fit Card Edge Connectors are a: Black | 0.100 inch (2.54 mm) pitch | .200 inch (5.08 mm) row spacing | thin insulator connector. Key features include: 0.100-inch (2.54-millimeter) contact pitch x .200-inch (5.08-millimeter) row spacing; accepts printed circuit boards with a nominal thickness of 0.062-inch (1.57-millimeter); thin insulator, 0.550-inch (13.97-millimeter) high; contact termination options include printed circuit board pigtail wire and 0.025-inch (0.64-millimeter) square (0.64 mm) square wire wraps; press-fit compliant sections for airtight, reliable connections in plated through-holes, eliminating the need for soldering operations; single- or double-row configurations; accepts both contact and contact-polarized keys (special features available upon request); insulator and contact removal tooling. Simple "flat rock" tool for connector installation.
1, EDAC | EDAC Connectors | Canada / Yaday Electronics 725 Series Press Fit Card Edge Connectors main product performance details:
| hallmark | standardize |
| 0.100 inch (2.54 mm) contact spacing x .200 inch (5.08 mm) row spacing | Insulator Material: UL 94V-0 TPU, Black |
| Accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) | Contact Material:Copper Alloy |
| Thin insulator, 0.550 inches (13.97 mm) high | Contact plating: 30u "gold plated in the mating area, tin plated on the tail, nickel plated on all bottoms |
| Contact termination options include printed circuit board pigtails and 0.025-inch (0.64-millimeter) square windings | Rated Current:3 Amps |
| Press-fit compliant parts, airtight and reliable connection in plated through-holes, no soldering required | Contact resistance: 10 milliohms greater |
| Single or double row configuration | Dielectric withstand voltage: 1200 VAC rms between adjacent contacts at sea level |
| Accepts contact and contact polarization keys (special features available upon request) | Insulation resistance: 5000 megohm minimum |
| Insulator and contact removal tool. Simple "flat rock" tool for connector installation. | Operating temperature: -40 degrees Celsius to +105 degrees Celsius |
| RoHS compliant and UL approved | Insertion force: 16 oz (4.45 Nm) per contact pair greater when tested with a 0.070 in (1.78 mm) thick gauge |
| Pullout force: 1oz (0.28N) minimum pullout force per contact pair when tested with a 0.054" (1.37mm) thick gauge. | |
| Contact insertion hole: 20 lbs (89 Nm) larger | |
| Contact retention force in hole: 10 lbs (44 Nm) minimum | |
| Re-insertability in the same hole: at least 3 times |
2, EDAC | EDAC Connectors | Canada / Yaday Electronics 725 Series Crimp Card Edge Connectors Main Part Number / Model Number Table:
| 725-005-520-101 | 725-006-541-101 | 725-008-525-101 | 725-010-520-101 | 725-010-545-101 |
| 725-005-522-101 | 725-006-545-101 | 725-008-540-101 | 725-010-520-201 | 725-010-545-201 |
| 725-005-525-101 | 725-007-520-101 | 725-008-541-101 | 725-010-522-101 | 725-010-560-201 |
| 725-005-540-101 | 725-007-522-101 | 725-008-545-101 | 725-010-522-201 | 725-011-520-101 |
| 725-005-541-101 | 725-007-525-101 | 725-009-520-101 | 725-010-525-101 | 725-011-522-101 |
| 725-005-545-101 | 725-007-540-101 | 725-009-522-101 | 725-010-525-201 | 725-011-525-101 |
| 725-006-520-101 | 725-007-541-101 | 725-009-525-101 | 725-010-540-101 | 725-011-540-101 |
| 725-006-522-101 | 725-007-545-101 | 725-009-540-101 | 725-010-540-201 | 725-011-541-101 |
| 725-006-525-101 | 725-008-520-101 | 725-009-541-101 | 725-010-541-101 | 725-011-545-101 |
| 725-006-540-101 | 725-008-522-101 | 725-009-545-101 | 725-010-541-201 | 725-012-520-101 |
3, Canada EDAC Connectors--EDAC|Canada/Yatech Electronics 725 Series Crimp Card Edge Connectors This product seller:
Evergrande electronic products network - agent sales [Canada EDAC connectors - EDAC | Canada / Yade electronic 725 series crimp card edge connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
