Compatible/Replacement for TE|Tyco|1410975-3 Board-to-Board Connector is a: High Speed Backplane Connector, 112 Position, Mate Alignment, Polarized Mate Alignment Type, 7 Row, 16 Column, PCB Mount Header, MULTIG RT 2 [3M Electronics offers TE|Teleco|1410975-3 Board-to-Board Connector Replacement].
1, Compatible/Replacement for TE|Tyco|1410975-3 Board-to-Board Connector Related Product Attributes:
| Product Type Characteristics | Connector System :Board to Board |
| PCB Connector Assembly Type :PCB Mounting Header | |
| Shroud type :All with shroud | |
| Connectors and terminals terminated to :Printed Circuit Boards | |
| Suitable for printed circuit board type :Daughter boards | |
| Structural Properties | Backplane Architecture :Conventional Backplane |
| Bit :112 | |
| Number of rows :7 | |
| Number of columns :16 | |
| PCB Mounting Orientation : Right Angle | |
| Lead position :Center | |
| Slot centerline :20.3 mm [ .8 in] | |
| Characteristics of contacts | Terminal rated current (max.) (A):1 |
| Mechanical accessories | Joint alignment :with |
| Mating Alignment Type :Polarized, Polarized | |
| Connector Mounting Type :Board Mount | |
| Shell Characteristics | Centerline (spacing) :1.8 mm [.071 in ] |
| Number of sides with hood :2 - Sides | |
| sizes | Line spacing :1.35 mm [ .053 in ] |
| operating environment | Operating temperature range :-55 - 105 °C [ -67 - 221 °F ] |
| Operation/Application | Circuit Applications :Power & Signal |

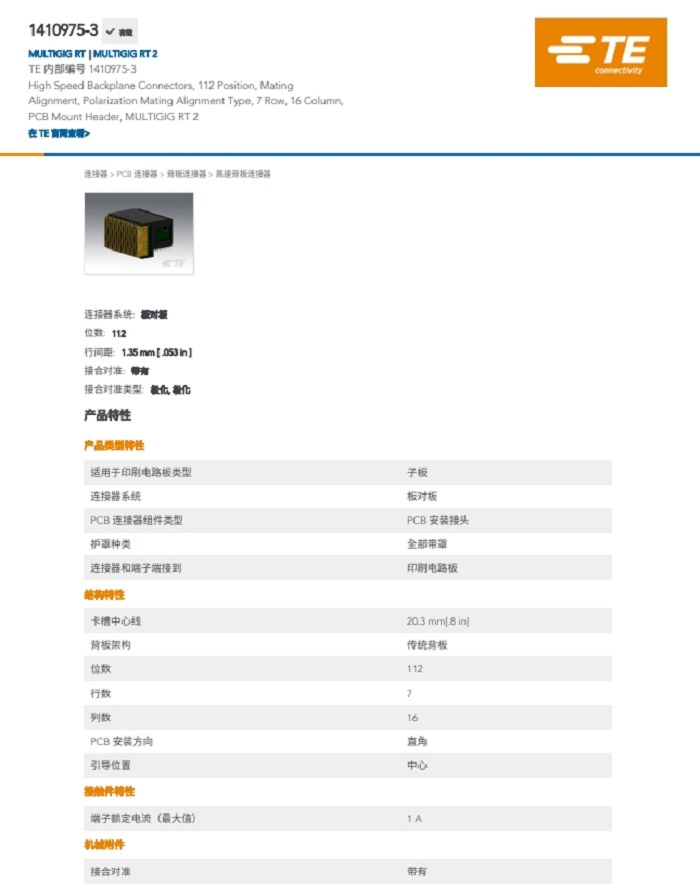

2, Compatible / Alternative to TE|Tyco|1410975-3 Board-to-Board Connector Product Specification:
3, Compatible / Alternative TE | Tyco | 1410975-3 Board-to-Board Connector Product Part Number / Model Number List:
| 1410975-3 |
4、Board-to-Board Connector - Provide Compatible TE|Tyco|1410975-3 Board-to-Board Connector Replacement This product seller: 3M electronic products network - the agent sales to provide [board-to-board connector - provide compatible TE|Tyco|1410975-3 Board-to-Board Connector Replacement] as well as specializing in the agency / production / sales of a variety of {connectors | harness | wire and cable products}; If you want to buy! If you want to buy or know what connectors, harnesses and cables we can provide, please feel free to contact us through the following ways.
