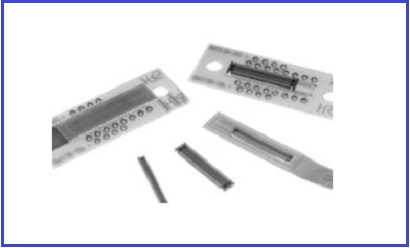

Compatible/Replacement for HRS|Hirose|BM10NB(0.8)-10DS-0.4V Board to board connector is a: board to board and mezzanine connector, 0.4mm fpc to board 10p recp 0.8 hght. Stacking height of 0.6mm or 0.8mm, pin spacing of 0.4mm, and depth of 2.98mm saves board space. The limiting contact design provides a clear contact ticking sound, providing highly reliable contact and retention for metal fittings.The BM10 series is designed with a notch at the contact location for enhanced vibration protection and robustness.Hirose BM10 series FPC to board connectors not only provide solder core protection, but also dust protection, RoHs compliant, and halogen free.The BM10 series is designed with a notch at the contact location for enhanced vibration protection and robustness.The BM10 series is designed with a notch at the contact location for enhanced vibration protection, and halogen free. [3M Electronic Products offer HRS|Hirose|BM10NB(0.8)-10DS-0.4V Board-to-Board Connector Replacement].
1, Compatible/Replacement HRS|Hirose|BM10NB(0.8)-10DS-0.4V Board-to-Board Connector products related specifications and parameters:
| Product Properties | attribute value |
| Manufacturer. | Hirose Electric |
| Product Category. | Board-to-Board and Mezzanine Connectors |
| Products. | Receptacles |
| Number of Positions. | 10 Position |
| Pitch. | 0.4 mm |
| Exclusions: 1 | 2 Row |
| Termination Type. | Solder |
| Mounting Angle. | Vertical |
| Stacking Height. | 0.8 mm |
| Current rating. | 300 mA |
| Voltage rating. | 30 V |
| Minimum Operating Temperature. | - 35 C |
| Maximum working temperature. | + 85 C |
| Contact Plating. | Gold |
| Contact Material. | Phosphor Bronze |
| Housing material. | Liquid Crystal Polymer (LCP) |
| Series. | BM10 |
| Packaging. | Reel |
| Trademark. | Hirose Connector |
| Insulation resistance. | 500 MOhms |
| Product Type. | Board to Board & Mezzanine Connectors |
| Factory Packing Quantity. | 8000 |
| Subcategories. | Board to Board & Mezzanine Connectors |
| Part No. Alias. | 684-6100-0-51 |
| Unit weight. | 14 mg |
2, Compatible / Alternative HRS|Hirose|BM10NB(0.8)-10DS-0.4V Board-to-Board Connector Product Specification:
3, Compatible / Replacement HRS | Hirose | BM10NB(0.8)-10DS-0.4V Board-to-Board Connector Part Number / Model Number List:
| BM10NB(0.8)-10DS-0.4V |
4、Board-to-Board Connector - Provide Compatible HRS|Hirose|BM10NB(0.8)-10DS-0.4V Board-to-Board Connector Replacement This product seller: 3M electronic products network - the agent sales to provide [Board-to-Board Connector - Provide Compatible HRS | Hirose | BM10NB(0.8)-10DS-0.4V Board-to-Board Connector Replacement] as well as a professional agent / production / sales of a variety of {connector | wiring harness | cable products}; if you want to buy or understand what we can provide connector | wiring harness | cable products solutions; welcome to contact us through the following way. We specialize in the manufacture and sale of a wide range of {connectors|wire harnesses|cables}; if you want to buy or know what connectors|wire harnesses|cables we can provide solutions for, please feel free to contact us through the following ways.
