Compatible/Replacement SAMTEC|STMM-110-02-G-D-RA Board-to-Board Connector is a: Collector Tube and Wire Shell 2.00 mm Shrouded Terminal Strip, Cable Mate [3M Electronics offers SAMTEC|STMM-110-02-G-D-RA Board-to-Board Connector Replacement].
1, Compatible/Replacement SAMTEC|STMM-110-02-G-D-RA Board-to-Board Connector Product Related Attributes:
| Product Properties | attribute value |
| Manufacturer. | Samtec |
| Product Category. | Headers and casings |
| Products. | Headers |
| Type. | Shrouded |
| Number of Positions. | 20 Position |
| Pitch. | 2 mm |
| Exclusions: 1 | 2 Row |
| Mounting Style. | Through Hole |
| Termination Type. | Solder Pin |
| Mounting Angle. | Right Angle |
| Contact Type. | Pin (Male) |
| Contact Plating. | Gold |
| Series. | STMM |
| Trademark Name. | Flex Stack |
| Applications. | Board-to-Cable |
| Minimum Operating Temperature. | - 55 C |
| Maximum working temperature. | + 125 C |
| Packaging. | Tube |
| Trademark. | Samtec |
| Contact Material. | Phosphor Bronze |
| Flammability Class. | UL 94 V-0 |
| Shell color. | Black |
| Housing material. | Liquid Crystal Polymer (LCP) |
| Latch Type. | Unlatched |
| Product Type. | Headers & Wire Housings |
| Factory Packing Quantity. | 22 |
| Subcategories. | Headers & Wire Housings |
| Unit weight. | 376 mg |

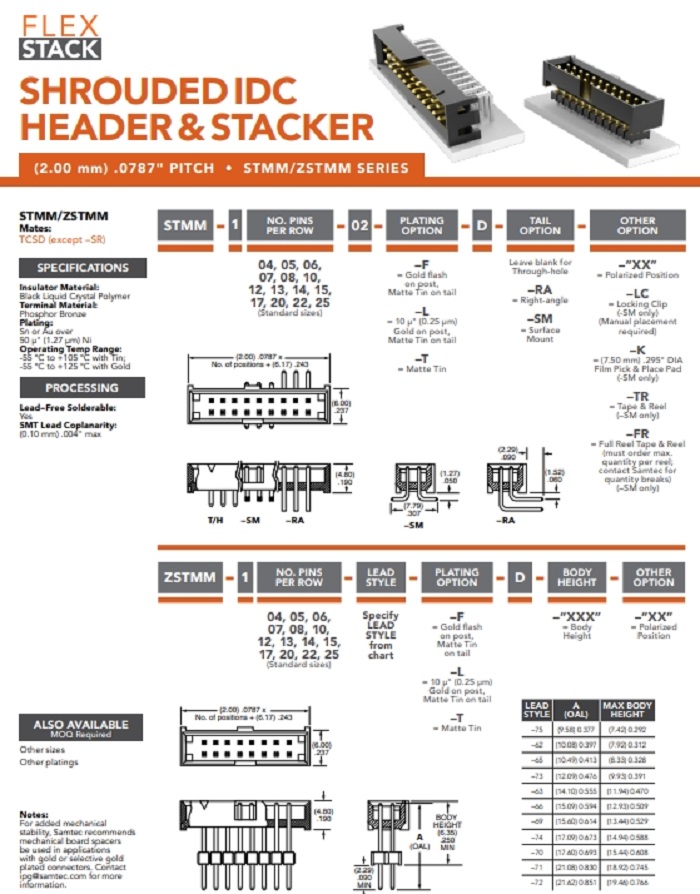

2, Compatible / Alternative to SAMTEC|STMM-110-02-G-D-RA Board-to-Board Connector Product Specification:
3, Compatible/Replacement SAMTEC|STMM-110-02-G-D-RA Board-to-Board Connector Product Part Number/Model Number List:
| STMM-110-02-G-D-RA | STMM-115-02-G-D-SM |
