I-PEX Connectors - Offers I-PEX 0.35mm Pitch 20708 Series Power Delivery Board-to-Board Connectors

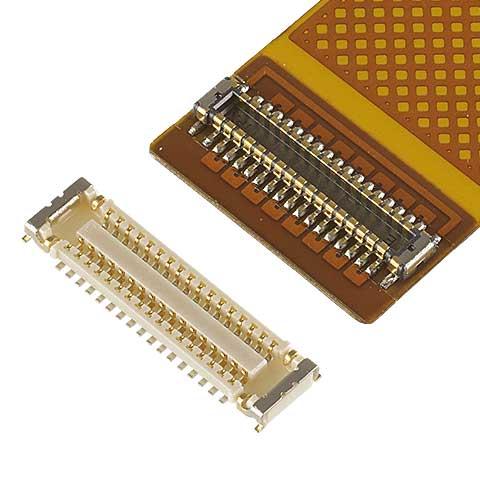

The I-PEX 0.35 mm pitch 20708 series power transmission board-to-board connector is a robust, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth connector that transmits power lines through a hold-down structure and Corson alloy primary terminals. The metal hold-down structure can be used for 2A X 2 power transmission; the metal guide design is easier to fit; the plug-in male seat makes the structure firm; Pin spacing (mm): 0.350; Height: 0.80 Max (0.70 Nom.); Pin number available: 10 14 18 20 24 30 34 40 50 60P power transmission board-to-board connector.

1、 I-PEX 0.35 mm Pitch 20708 Series Power Transfer Board-to-Board Connectors Main Product Details:

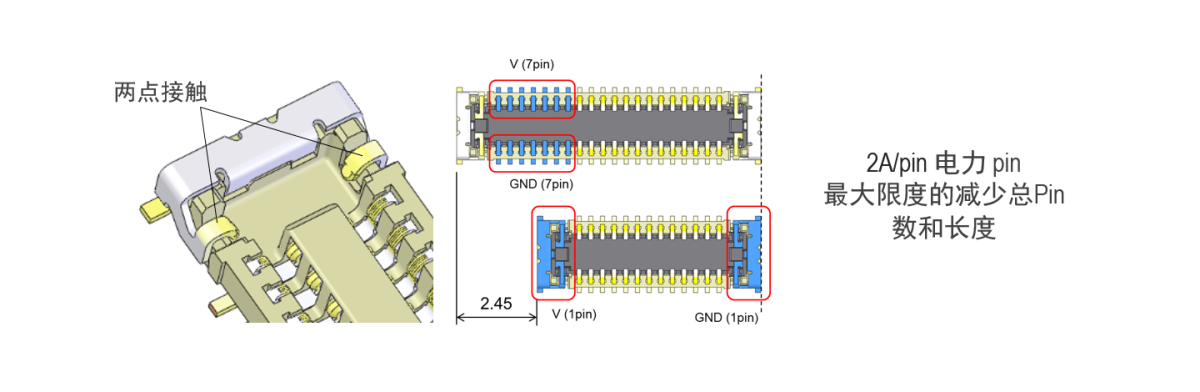

Metal hold-down structure can be used for 2A X 2 power transmission:

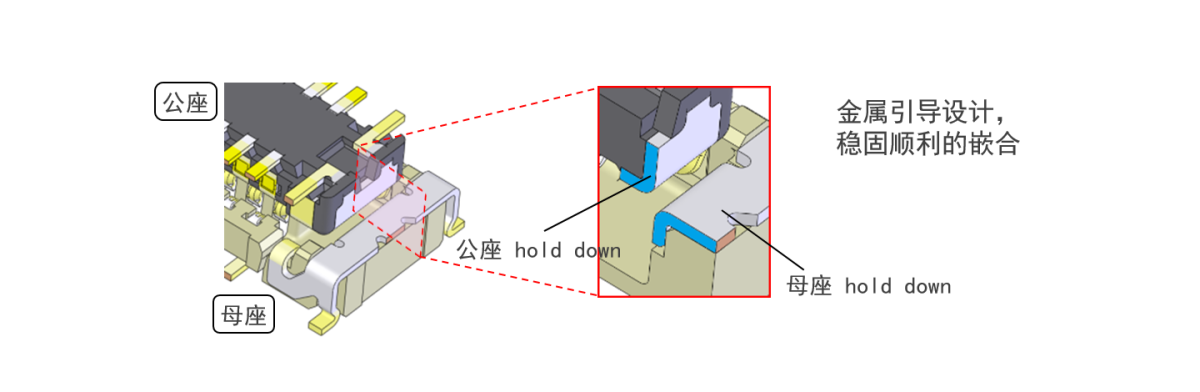

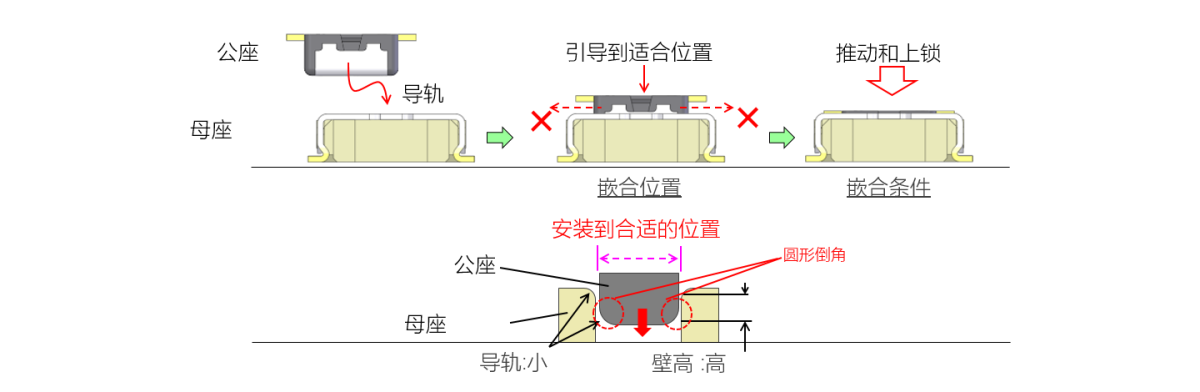

Metal guide design for easier mating:Plug-in male seat makes the structure strong:

------------------------------------------------------------------------------------------------

2、 I-PEX 0.35 mm Pitch 20708 Series Power Transfer Board-to-Board Connectors Specifications:

------------------------------------------------------------------------------------------------

3、 I-PEX 0.35 mm Pitch 20708 Series Power Transfer Board-to-Board Connectors Main Models/Part Numbers:

NOVASTACK 35-P RECOMMENDED PART NUMBERS

OTHER NOVASTACK 35-P PART NUMBERS

------------------------------------------------------------------------------------------------

4、 Japan I-PEX Connectors -- I-PEX 0.35 mm Pitch 20708 Series Power Transfer Board-to-Board Connectors
