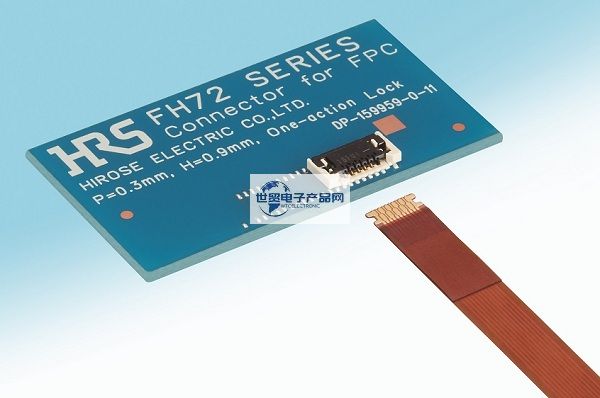

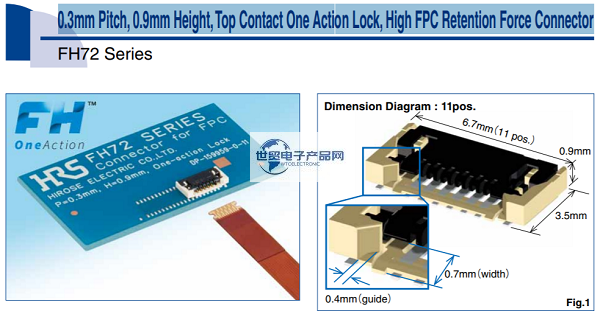

HRS | Hirose | Japan Hirose FH72 series 0.3mm pitch/0.9 mm height/self-locking FPC connector is a 0.3mm pitch, 0.9 mm height, up-touch single-action lock, high retention FPC connector. Its main features are: 1. Space-saving design. Space-saving design with 0.3mm pitch, 3.5mm depth and 0.9mm height. 2. Automatic single-acting lock design can realize single-acting lock only by inserting FPC after installation, which is helpful to improve operability. (The lock is released by operating the lock lever during removal.) · The actuator does not need to be operated when the FPC is engaged. · Can be inserted with one hand. · Helps reduce assembly time without damaging the locking lever. · Eliminate faults caused by FPC moving during locking. 3.High FPC retention force · The notches on both sides of the FPC are secured by a locking lever, which produces a high FPC retention force despite the smaller size. 4. Easy to insert FPC · Wide guide rail, easy to insert FPC. 5. Compatible with 0.2mm thick FPC · 3mm pitch connector, compatible with 0.2mm standard thickness FPC (proper metal plate rigidity can prevent FPC deformation and problems during insertion and assembly). 6. Detect the mismatch between FPC and the original structure. The mismatch can be detected by checking the FPC insertion state and the FPC mode.

1、 HRS | Hirose | Japan Hirose FH72 Series 0.3mm Pitch/0.9mm Height/Self-locking FPC Connector Main Product Specification Details:

------------------------------------------------------------------------------------------------

2、 Japan HRS | Hirose | FH72 series 0.3mm pitch/0.9mm height/self-locking FPC connector Main material number/model:

------------------------------------------------------------------------------------------------

3、 Japan HRS Connectors -- HRS | Hirose | FH72 Series 0.3mm Pitch/0.9mm Height/Self-Locking FPC Connector
