JAE Connectors-Provide JAE|Japanese Avionics WP26 Series 0.35mm Pitch Board-to-Board Connectors

Categorization:Brand Connector

Specializing in the sales of: Connectors | Wire Harness | Cable Products

JAE | JAE Connectors | Japan Avionics WP26 series 0.35mm pitch board-to-board connector is a 0.35mm pitch, low-profile stacked board-to-board (FPC) connector ideal for high-density installation in thin, compact information communication devices such as smartphones. The construction of the WP26 series adds protection to the mating surfaces to prevent the insulator from being damaged by the application of force when the connector is misaligned. In addition, it offers 15% less mounting space than JAE's previous product (the WP9 series), saving board space and improving design flexibility. Its main features are: 0.35 mm spacing, 2 rows, 0.6 mm stacking height. The compression structure increases the protection of the mating surface and prevents the insulator from being damaged. (Armor), two-point contact design, resists torsional stress. It improves the operability of customers and has a clear sense of click. The contact structure ensures high wear resistance and high contact reliability. Lead-free. (The nickel barrier on the contacts prevents solder wicking.) ? Signal contacts support 10 Gbps transfer rates. Supports MIPI, USB3.1 Gen 2, and PCIe Gen 3 transfers. The main applications are: smart phones and other information and communication equipment.

1、 JAE | JAE Connectors | Japan Avionics WP26 Series 0.35 mm Pitch Board-to-Board Connectors Main Product Specifications Details:

Number of Contacts10, 24, 34, 40, 42, 54, 60 pos.
Pitch0.35 mm, 2 rows
Rated CurrentAC, DC 0.3 A/ terminal
Rated VoltageAC, DC 50 V
Contact Resistance70 milliohm max. (initial)
Insulation Resistance100 megohm min. (initial)
Dielectric Withstanding VoltageAC 250 Vr.m.s. for 1 minute
Total Insertion Force1.5N x n max. (n: No. of pos.)
Total Extraction Force0.15N x n min. (n: No. of pos.)
Life Time30 mating cycles
Operating Temperature Range-40 Deg. C to +85 Deg. C

------------------------------------------------------------------------------------------------

2、 Japan JAE | JAE Connector | Japan Avionics WP26 Series 0.35 mm Pitch Board-to-Board Connector Main Part No./Model:

Product NameFeaturesNumber of Positions
WP26-P024VA1-R150000.35mm pitch, Stacking type board-to-board (FPC) connector, 24 pos., Plug24 pos.
WP26-P040VA1-R150000.35mm pitch, Stacking type board-to-board (FPC) connector, 40 pos., Plug40 pos.
WP26-S024VA1-R150000.35mm pitch, Stacking type board-to-board (FPC) connector, 24 pos., Receptacle24 pos.
WP26-S040VA1-R150000.35mm pitch, Stacking type board-to-board (FPC) connector, 40 pos., Receptacle40 pos.

------------------------------------------------------------------------------------------------

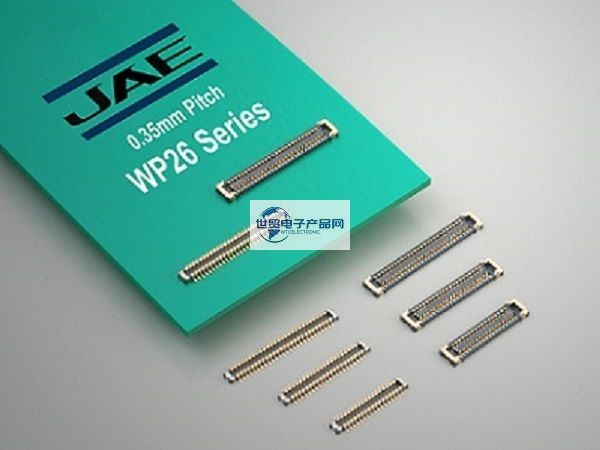

3、 Japan JAE Connectors -- JAE | Japan Avionics WP26 Series 0.35 mm Pitch Board-to-Board Connector
