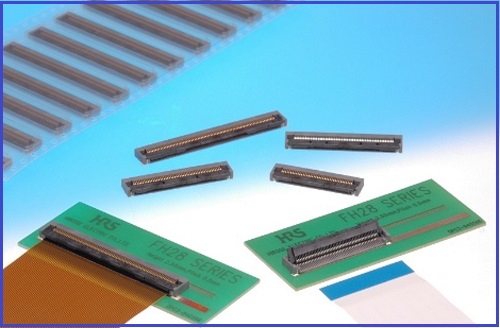

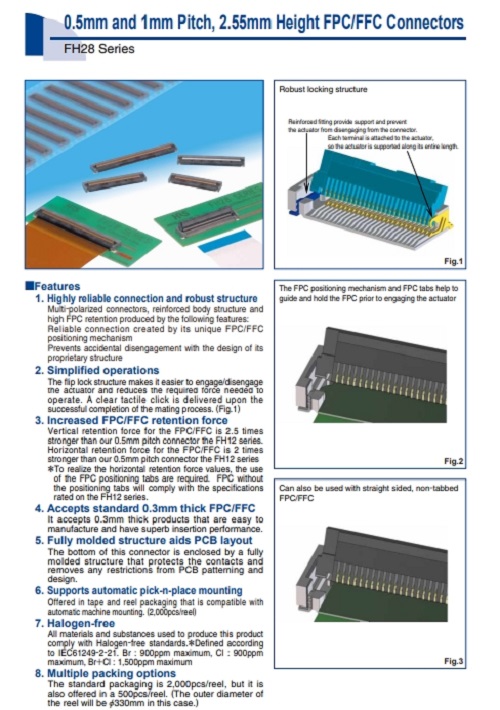

Compatible/Replacement HRS Hirose Hirose Connector FH28-20S-0.5 SH The FPC/FFC connector is a: 0.5 mm and 1 mm pin pitch, 2.55 mm height FPC/FFC connector; The main features and advantages are: 1. Highly reliable connection mode and strong construction 2. Simplified operation 3. Increased FPC/FFC retention 4. Accepts standard 0.3 mm thickness FPC/FFC 5. Fully molded structure facilitates PCB layout 6. Supports automated suction-placement assembly 7. Halogen-free 8. 500pcs per reel packingoption available (For trial production) [World Trade Electronic Products Network provides HRS Hirose Hirose connector FH28-20S-0.5 SH FPC/FFC connector replacement].
---------------------------------------------------------------------------------------------1. Compatible with/replacing HRSHirose connector FH28 series connector FPC/FFC connector product specifications and parameters:
| Connector Type | socket | Installation spacing | 0.5, 1.0 mm |
| Connector length (pitch direction) | 9.9, 12.4, 14.9, 15.7, 18.9, 19.9, 20.7, 24.9, 25.7, 27.4, 29.9, 30.7, 32.4, 34.9, 35.7, 36.9, 38.9, 39.7, 41.9, 45.7 mm | Connector height | 2.55 mm |
| Connector width (longitudinal direction) | 6.4 mm | Contact Point Location | lower contact |
| ZIF/Non-O ZIF/LIF | ZIF | Recommended FFC/FPC | FPC/FFC Connector |
| FPC/FFC insertion direction | Level | direction of movable sheet | front |
| Number of PINs | 10, 15, 20, 25, 28, 30, 40, 45, 50, 55, 60, 64, 68, 74, 80 | Number of other PINs | |
| opening spacing | 0.5, 1.0 mm | (Installation section) Number of columns | |
| Transmission Specifications | Transmission speed | ||
| (Max.) Operating Temperature Range | 105 ℃ | (Min.) Operating Temperature Range | -40 ℃ |
| (AC) Rated Voltage | AC 50.0 V | (DC) Rated Voltage | DC 50.0 V |
| rated current | 0.5 A |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| FH28-10S-0.5SH | FH28-20S-0.5SH | FH28-30S-0.5SH | FH28-40S-0.5SH |
| FH28-50S-0.5SH | FH28-60S-0.5SH | FH28-68S-0.5SH |
4. FPC/FFC connector-Compatible HRSFH28-20S-0.5 SH FPC/FFC connector replacement is available
