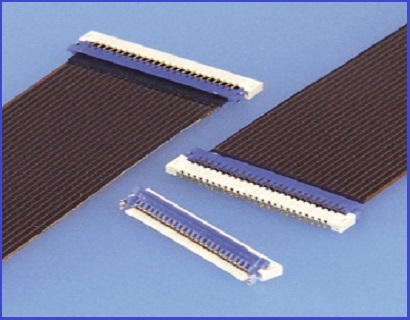

Compatible with/replacing JST Japanese press-on terminal Japanese press-on terminal connector 16FHSY-RSM1-GAN-TB The board-to-FPC connector is a low-back type with a package height of 0.9 mm, which is a ZIF light-press locking type FPC connection connector corresponding to the standard FPC thickness of 0.3 mm; Its main characteristics and advantages are: saving space; Heat-resistant design is best suited for surface packaging; Automatic packaging corresponds to plastic tape packaging. [World Trade Electronic Products Network provides JST Japanese pressed terminal Japanese pressed terminal connector 16FHSY-RSM1-GAN-TB FFC/FPC connector replacement].
-----------------------------------------------------------------------------------1. Compatible with/replacing JST Japanese pressed terminal Japanese pressed terminal connector FHSY series connector FFC/FPC connector product related specifications and parameters:
| Type 1: | / |
| Type 2: | Zero insertion force type, SMT type |
| Spacing: | 0.5 |
| Current: | 0.5A |
| Features: | low profile |
| Space saving in depth | |
| Category Name: | FFC/FPC Connector |
| Height: | 0.5 |
| Voltage: | 50V |
| Thickness: | 3.4 |
| Description: | This ZIF-type "flip lock" FPC connector achieves a low profile feature of 0.9 mm package height, despite the 0.3 mm thickness of the FPC. |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| 10FHSY-RSM1-GAN-TB | 08FHSY-RSM1-GAN-TB | 15FHSY-RSM1-GAN-TB | 22FHSY-RSM1-GAN-TB | 06FHSY-RSM1-GAN-TB |
| 12FHSY-RSM1-GAN-TB | 10FHSY-RSM1-GAN-TB | 16FHSY-RSM1-GAN-TB | 24FHSY-RSM1-GAN-TB | 14FHSY-RSM1-GAN-TB |
| 04FHSY-RSM1-GAN-TB(HF)(NN) | 11FHSY-RSM1-GAN-TB | 17FHSY-RSM1-GAN-TB | 27FHSY-RSM1-GAN-TB | 20FHSY-RSM1-GAN-TB |
| 05FHSY-RSM1-GAN-TB | 12FHSY-RSM1-GAN-TB | 18FHSY-RSM1-GAN-TB | 28FHSY-RSM1-GAN-TB |
