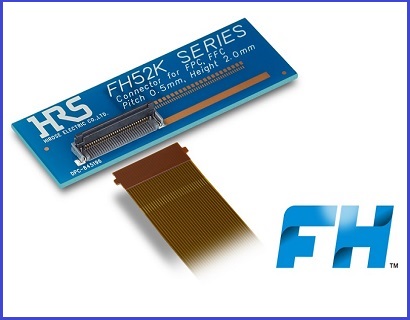

Compatible/Replacement HRS Hirose Hirose Connector FH52K-60S-0.5 SHFPC/FFC Connector is a: 0.5 mm/1mm Pitch 2mm Height 125 ℃ Heat Resistant FPC/FFC a connector; Its main characteristics and advantages are: 1. It corresponds to high temperature resistance of 125 ℃ and passes various harsh vehicle test conditions; 2. Unique terminal design realizes a firm locking structure; 3. The tab structure improves the FPC/FFC holding force; 4. L-shaped reinforced metal parts provide easy visual inspection & improve peel strength; 5. There is no prohibited wire area on the bottom surface of the connector; 6. Corresponding to automatic installation; 7. RoHS compliant, halogen-free products. [World Trade Electronic Products Network provides HRS Hirose Hirose connector FH52K-60S-0.5 SHFPC/FFC connector replacement].
-----------------------------------------------------------------------------------------1. Compatible with/replacing HRSHirose connector FH52K series connector FPC/FFC connector product related specifications and parameters:
| Connector Type | socket | Installation spacing | 0.5, 1.0 mm |
| Connector length (pitch direction) | 8.1, 9.1, 10.1, 11.1, 12.6, 14.1, 15.1, 16.1, 17.1, 17.6, 18.1, 20.1, 21.1, 22.1, 25.1, 27.6, 30.1, 35.1, 39.1, 45.1 mm | Connector height | 2.0 mm |
| Connector width (longitudinal direction) | 5.7 mm | Contact Point Location | lower contact |
| ZIF/Non-O ZIF/LIF | ZIF | Recommended FFC/FPC | FPC/FFC Connector |
| FPC/FFC insertion direction | Level | direction of movable sheet | front |
| Number of PINs | 6, 8, 10, 12, 15, 18, 20, 22, 24, 25, 26, 30, 32, 34, 40, 45, 50, 60, 68, 80 | Number of other PINs | |
| opening spacing | 0.5, 1.0 mm | (Installation section) Number of columns | 1 |
| Transmission Specifications | MIPI D-PHY ver. 1.2, HDMI 1.4a, eDP ver. 1.3 | Transmission speed | |
| (Max) Operating Temperature Range | 125℃ | (Min.) Operating Temperature Range | -40 |
| (AC) Rated Voltage | AC 50.0 V | (DC) Rated Voltage | DC 50.0 V |
| rated current | 0.5 A |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| FH52K-8S-0.5SH | FH52K-12S-0.5SH | FH52K-40S-0.5SH | FH52K-60S-0.5SH | FH52K-68S-0.5SH |
| FH52K-10S-0.5SH | FH52K-30S-0.5SH | FH52K-50S-0.5SH |
------------------------------------------------------------------------------4. FPC/FFC Connectors-Compatible FH52K-60S-0.5 SHFPC/FFC Connector Alternatives Available
