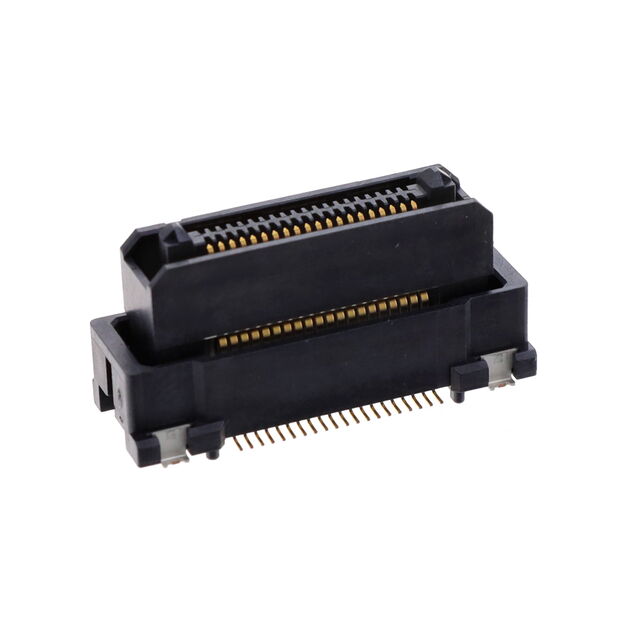

JAE MA01R040HAYBR600 connector product overview:
 | Manufacturer | JAE |
| Manufacturer part number | MA01R040HAYBR600 | |
| Product Description | RIGID SIDE B2B CONNECTOR, RIGHT, 40 Position Connector Socket, Housing Contact Surface Mount, Right-Angled Gold Plated |
JAE MA01R040HAYBR600 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | MA01 |
| Packing | Coil (TR) |
| CT Shear (CT) | |
| Digi-Reel® Custom Reel | |
| Connector type | Socket, outer casing contact |
| Acupuncture points | 40 |
| spacing | 0.025"（0.64mm） |
| Row number | 2 |
| Installation Type | Surface mount, right angle |
| Characteristic | Guide rail |
| Touch head surface treatment | Gilded |
| Touch probe surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | - |
| Board height | 0.260"（6.60mm） |
Introduction to the JAE MA01R040HAYBR600 connector product (series):
JAE Electronics' MA01 series rectangular connector is a high-density edge type socket designed with an outer shell contact design, specifically for surface mount right angle mounting applications. The connector has 40 pins with a spacing of 0.025" (0.64mm) and a 2-row structure to meet the needs of high-density connections. The MA01 series connectors are equipped with board track features, ensuring a firm fixation during installation, enhancing the stability and reliability of the connection. The contact surfaces are gold-plated with a thickness of 4.00µin (0.100µm), ensuring excellent electrical contact performance and corrosion resistance. Its board height is 0.260" (6.60mm), suitable for devices with limited space. The series of connectors is available in various packaging forms, providing tape (TR), cut tape (CT), and Digi-Reel® custom reels, making it convenient for customers to choose according to their needs. The MA01 series is widely used in communication, computer, industrial control, and other fields, and is an ideal choice for achieving high-performance, high-reliability connections.
