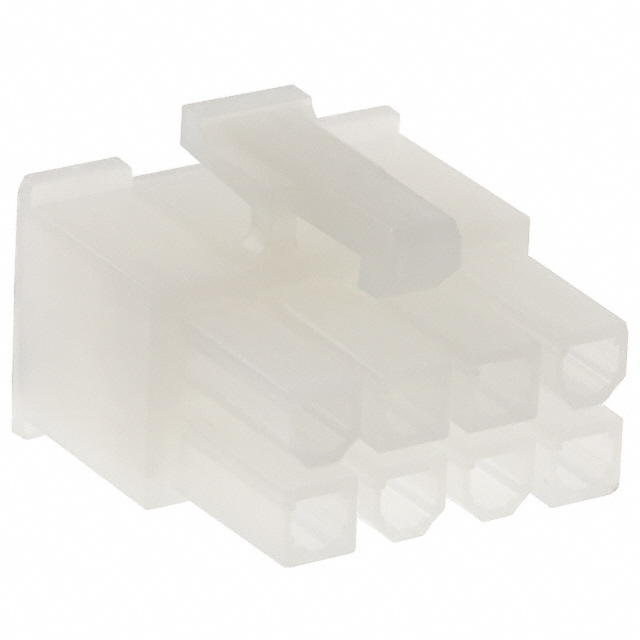

Molex 0039012085 connector product overview:
 | Manufacturer | Molex |
| Manufacturer Part Number | 0039012085 | |
| Product Description | CONN RCPT HSG 8POS 4.20MM,8 Rectangular Connector - Shell Socket Natural 0.165" (4.20mm) |
Molex 0039012085 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | Molex |
| Series | Mini-Fit Jr 5557 |
| Packaging | Bulk |
| Connector type | outlet |
| Contact type | Mother mold socket |
| Needle count | 8 |
| Spacing | 0.165"（4.20mm） |
| row number | 2 |
| Arrangement distance | 0.165"（4.20mm） |
| Installation type | Free suspension |
| Touch end connection | Press fit |
| Fastener type | Unlock |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Working temperature | -40°C ~ 105°C |
| Please provide the text you would like to have translated into English. | Touchless |
Molex 0039012085 connector product (series) introduction:
The Molex Mini-Fit Jr 5557 series rectangular connector is a high-performance socket connector suitable for various electronic devices and electrical applications. This series of connectors uses a free-hanging installation method, has an 8-pin configuration with a spacing of 0.165" (4.20mm), and is equipped with a 2-row design with a row spacing of 0.165" (4.20mm). The contact type is female socket, the termination method is crimping, and the fastening method is pin lock, ensuring a reliable electrical connection. The Mini-Fit Jr 5557 series connectors use polyamide (PA66) and nylon 6/6 as insulation materials, capable of withstanding a working temperature range of -40°C to 105°C, ensuring stable performance in harsh environments. This series of connectors is packaged in bulk and is suitable for various industrial and consumer electronics applications, widely used in computer, electrical, automation and other fields. This connector does not contain contacts, and users can choose suitable contacts for matching use according to their needs to meet different engineering design requirements.
Molex 0039012085 connector documentation and media:
| Resource type | Link |
| Specification Sheet |
