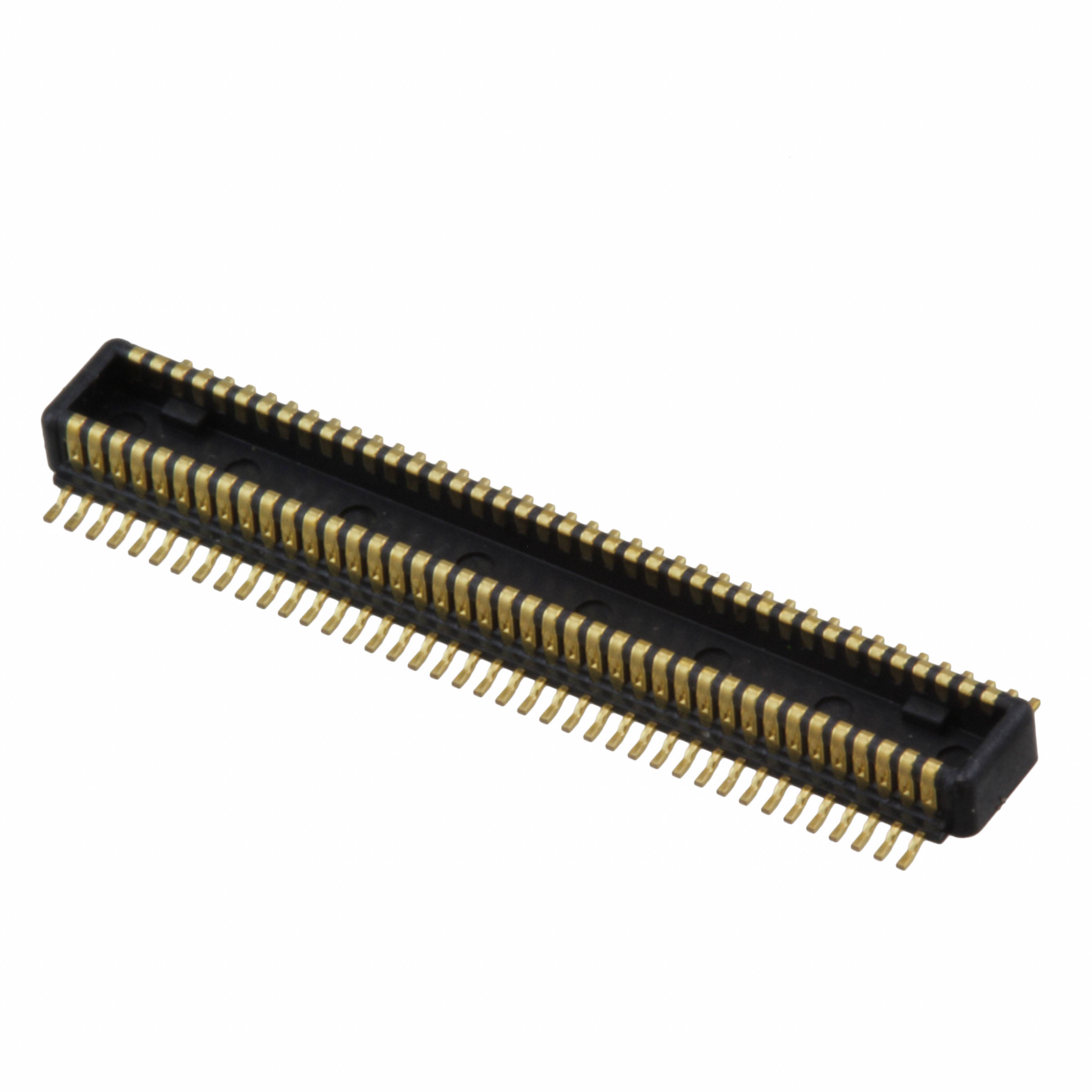

Panasonic connector - Provide product overview of Panasonic AXK880145WG connector
 | Manufacturer | Panasonic |
| Manufacturer Part Number | AXK880145WG | |
| Product Description | CONN HDR 80POS SMD GOLD, 80 position connector plug, housing contact surface mount type gold plated |
Panasonic connector - Provide product attributes of Panasonic AXK880145WG connector
| Type | Description |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | Panasonic Electric Works |
| Series | P4 |
| Connector type | Connector, cover contact |
| Needle count | 80 |
| spacing | 0.016"（0.40mm） |
| arrangement of rows | 2 |
| Installation Type | Surface Mount Technology |
| Feature | - |
| Contact surface treatment | Gold plated |
| Contact surface treatment thickness | - |
| Combined stacking height | 1.5mm，2mm，2.5mm |
| Board height | 0.052"（1.32mm） |
Panasonic Connector - Provide an introduction to the Panasonic AXK880145WG connector product series:
Panasonic AXK880145WG is a high-density sandwich-type board-to-board connector from the P4 series, featuring 80 pin positions and a double-row design with a 0.4mm pitch, specifically designed for compact, high-performance electronic devices. The connector uses a joint structure with a cover contact, ensuring stable connection and anti-interference capability, suitable for applications with high requirements for size and signal integrity, such as smart terminals, industrial equipment, medical instruments, and other scenarios.
This product is a surface mount type, supporting automated production processes to improve assembly efficiency. The contact pieces are gold plated, effectively enhancing the conductivity and corrosion resistance, ensuring long-term stable operation. AXK880145WG offers various combination stack heights of 1.5mm, 2mm, and 2.5mm, meeting the design requirements of different structural layouts. With Panasonic's excellent manufacturing technology and reliable quality, AXK880145WG is an ideal solution for achieving high-density and reliable connections.
Panasonic connector - Provide Panasonic AXK880145WG connector documentation and media:
| Resource type | Link |
| Specification Sheet | Please contact the person listed at the bottom of the article for more information. |
Panasonic connector - Offering genuine Panasonic AXK880145WG connector and related substitute product information
We focus on the in-stock supply of (Panasonic) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, which have undergone rigorous testing to ensure stability and efficiency. Welcome to contact us via the contact information below the document page!
